Can anyone post some pictures of the mechanism, that operates the louvers, its' the piece(s)that connect the activation rod, and the louver pivot point. If you need more detail, please post

Thanks peter:oops:

TwinH

Here's a couple pics of my 30 if that helps any.

essexcoupe3131

David Webster might be able to help out, hes got a 28 coupe

Unknown

Thanks for the info. much appreciated
Peter

ESSX28-1

Peter

This is my 28 Essex in the louvres open position, I think the 29 is the same mechanism.





Get back to me if you want more.

Unknown

Thanks for the pics of the 28 louvers' operator pieces' this make it a lot easier' tried making the 30-31 mechanism' it could work but needs mods, appreciate the 30-31 pics also, it gave me a starting point. Just need some measurements, width, depth, and length for bracket and measurements of the operating cam, this would be must appreciated.I could take an educated guess from the pics, will try this first, if you could post the mearurement, or email them, please to ptraxler@cogeco.ca

thanks again Peter

ESSX28-1

Peter
If you can give me a few days I can go to the 'spare dept' & do an exact measurement & maybe even find the actual unit as a spare (no promises on that).It's in a tricky place to measure whilst it's on the car.

Unknown

Thanks Dave, would be much appreciated, trying to make one out of cardboard as a pattern, but a few measurements would be a help, of the bracket and lever, and if you have a spare that great!

Peter

Unknown

Just wondering if you have had a chance to measure the bracket and lever for me, made the cardboard template and lever, I would like to know if I am in the ballpark with my templates, thanks for your assistance!

Peter

Got my louver mounted and the rad to the rad shell, just waiting before i go to the shop and get this madeup, thanks again

forjack842

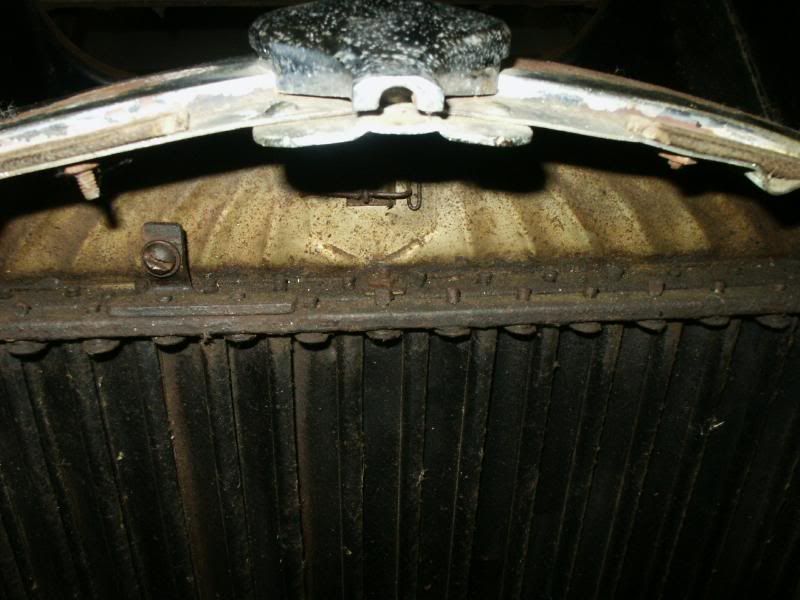

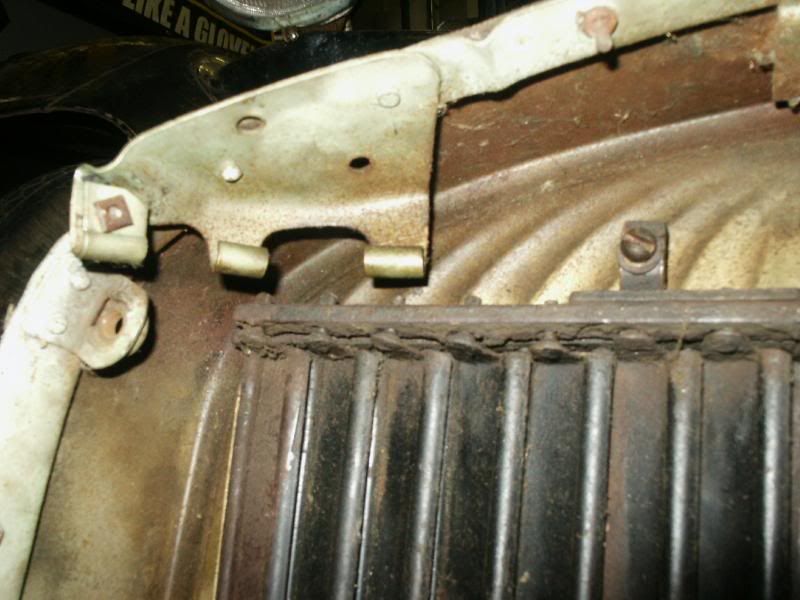

Here's a couple of a 29 Essex recently made available from a member.
