Speedo and clock faces

GrimGreaser

No worries!

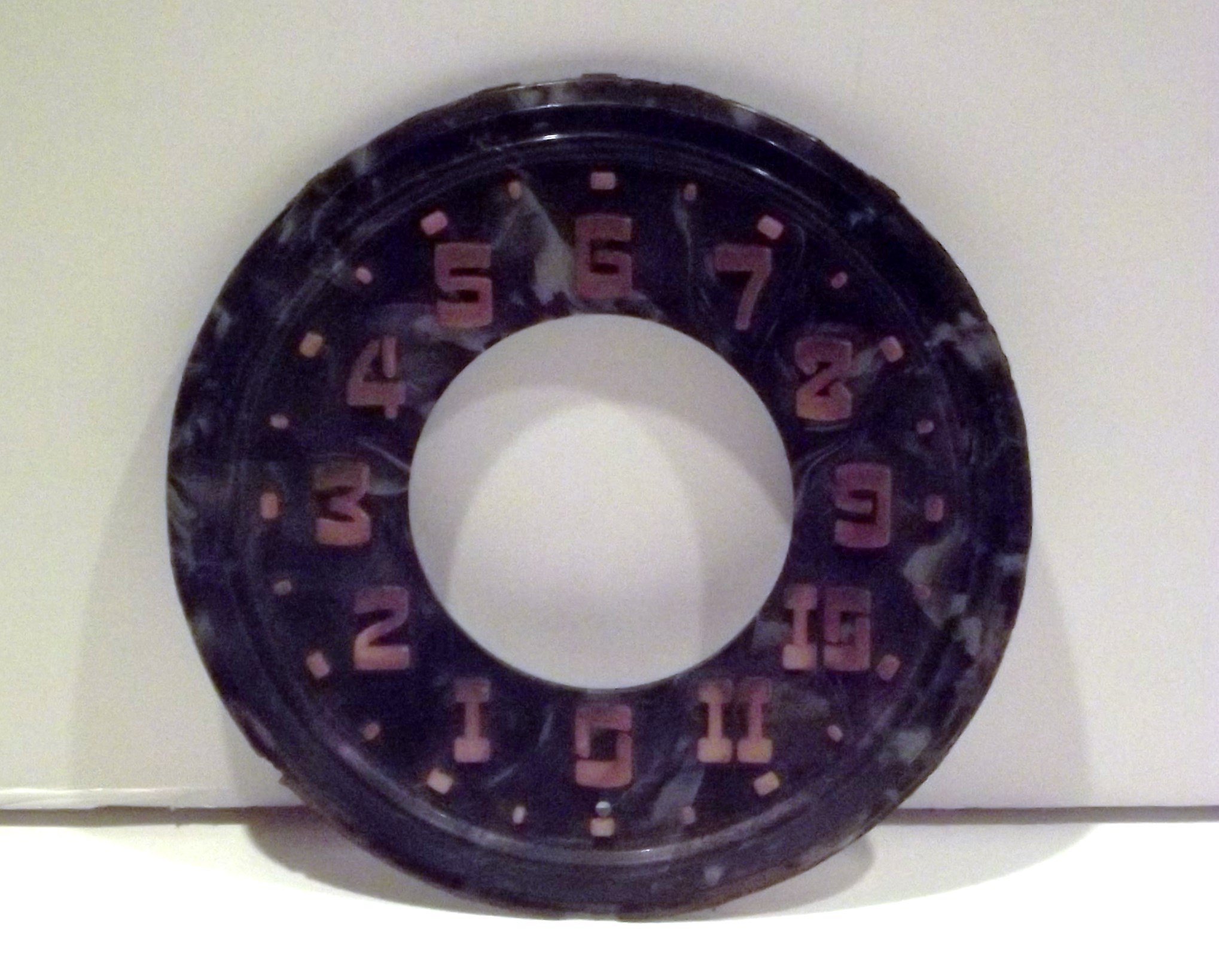

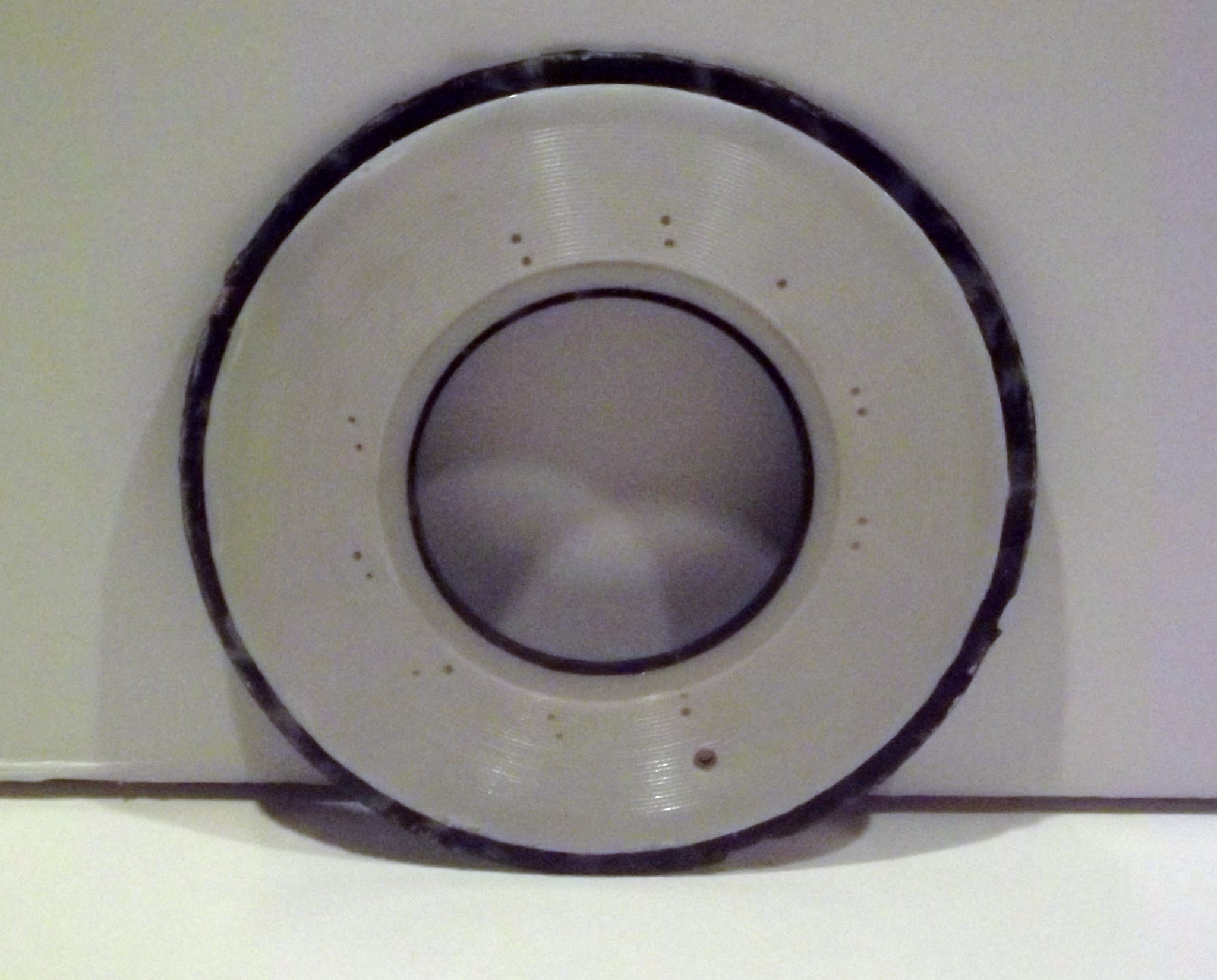

Just a few details to everyone interested in these - right now the faces are only in black and metallic and the numbers can be ordered in several colors.  The big hand can be ordered in all the colors too - but the black on the round will need to be painted on.  The parts are porous - so they need to be sealed first (clear nail polish or superglue works well) to prevent bleed-thru if you paint details on them.

JasonNC

So TwinH when are you going to start the other thread?

GrimGreaser

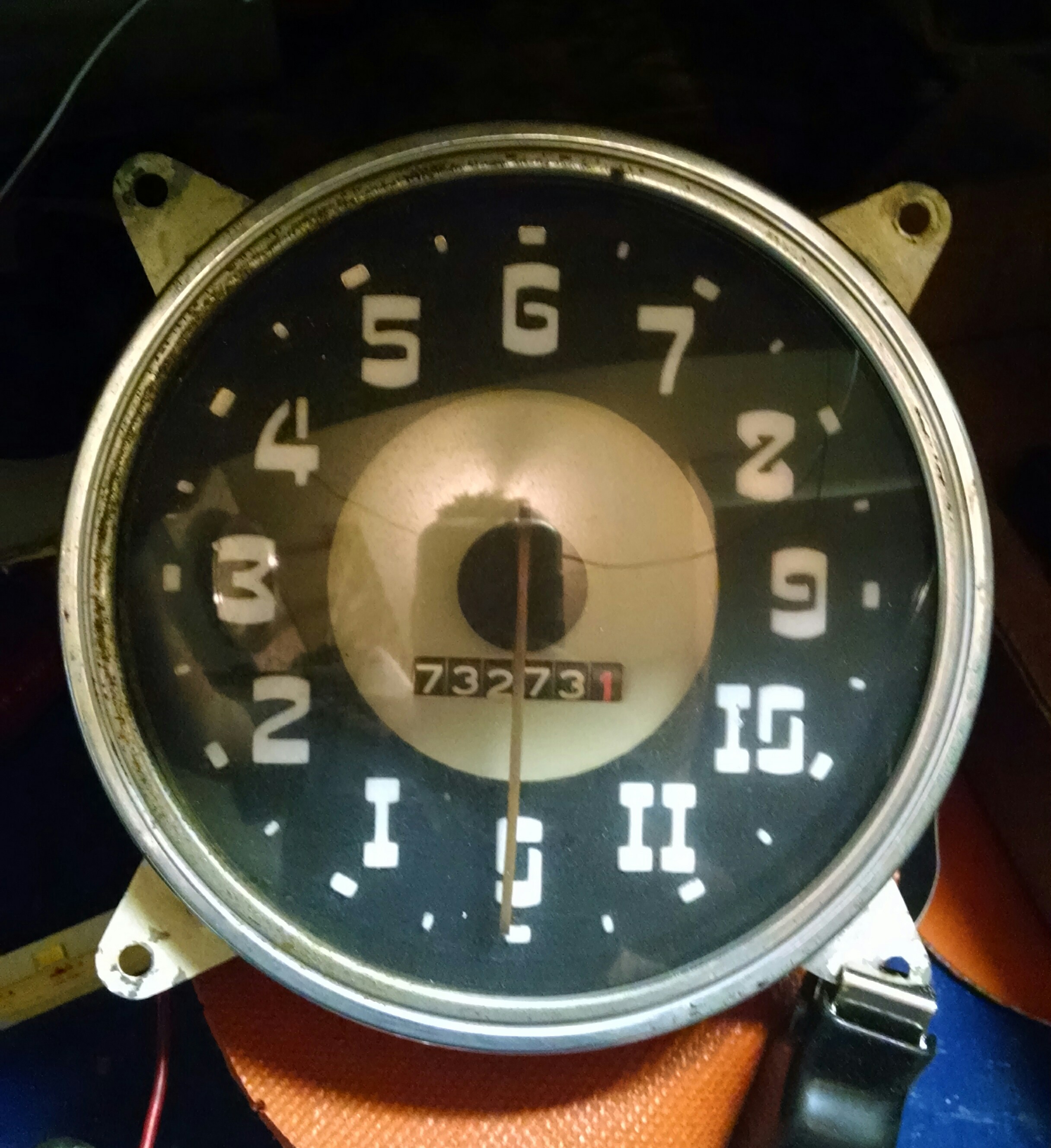

Way overdue update. Got a new face in my Speedometer! New speedo pointer in process.

RL Chilton

Looks awesome.  Are you going to be selling these?

GrimGreaser

Yes! https://www.shapeways.com/shops/grims-miscellanea

Sorry, no swirl or phosphorescence. But - pull apart your center gauge and paint everything to match.

lostmind

Prices seem very reasonable for specialty parts.

DavidC

Very nice.  Wish you were around before I paid a small fortune for NOS

GrimGreaser

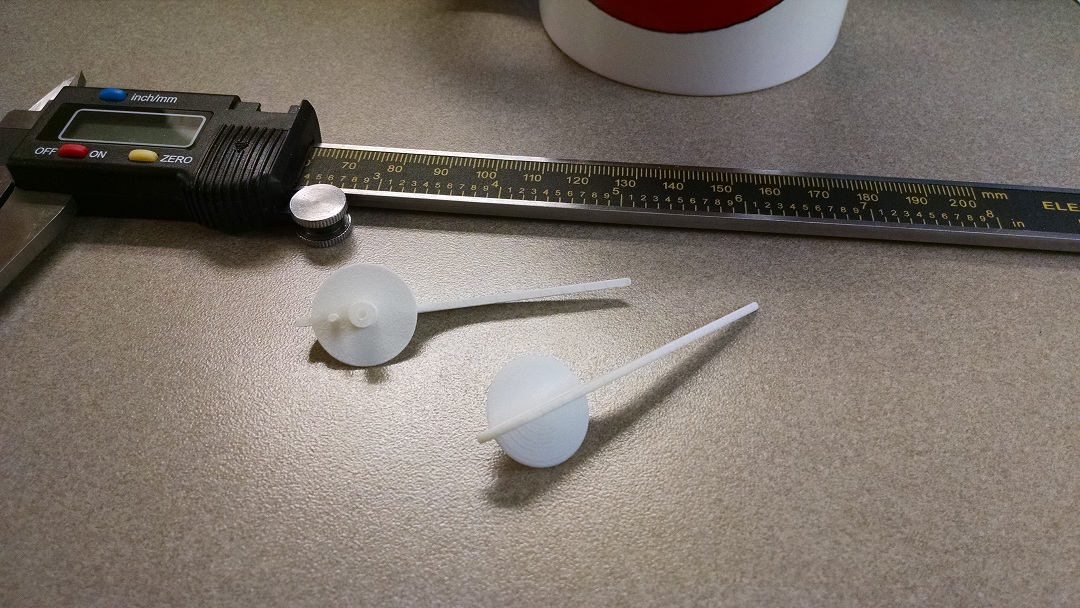

Speedo needles are in and look good, now to make the counter weights.

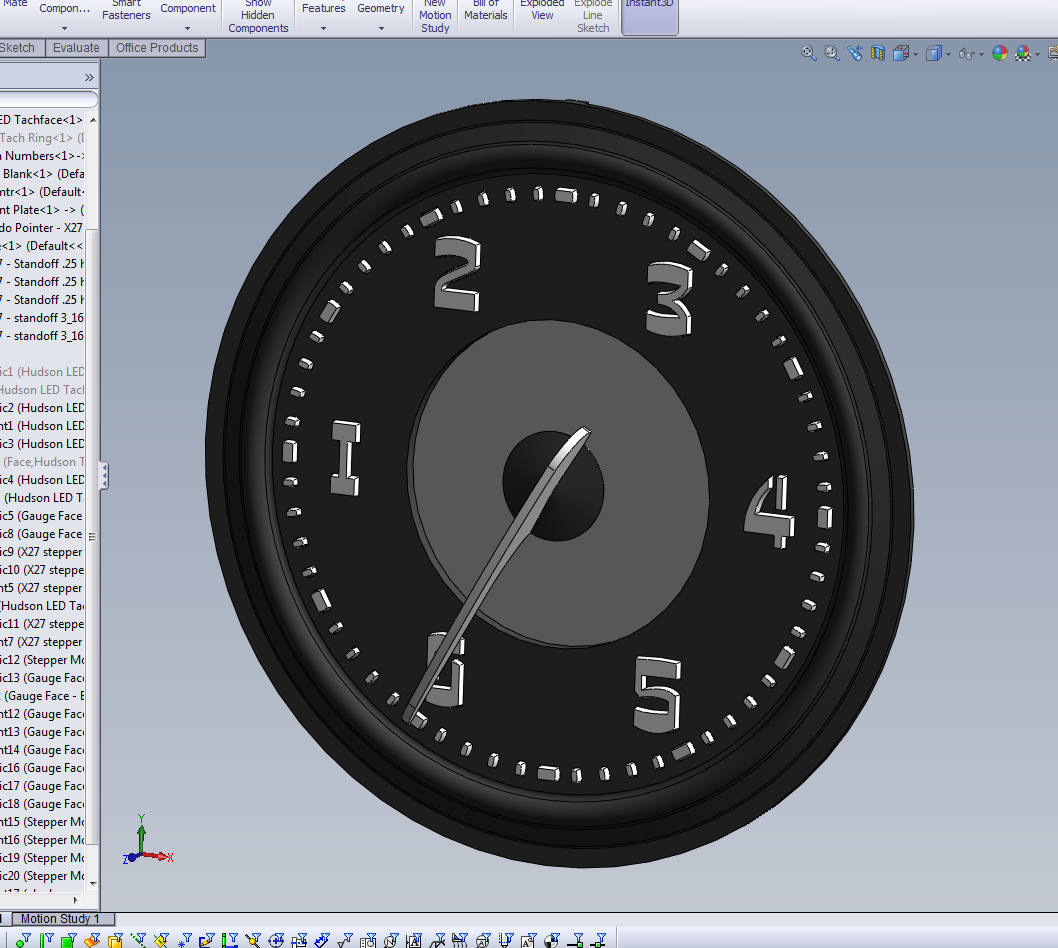

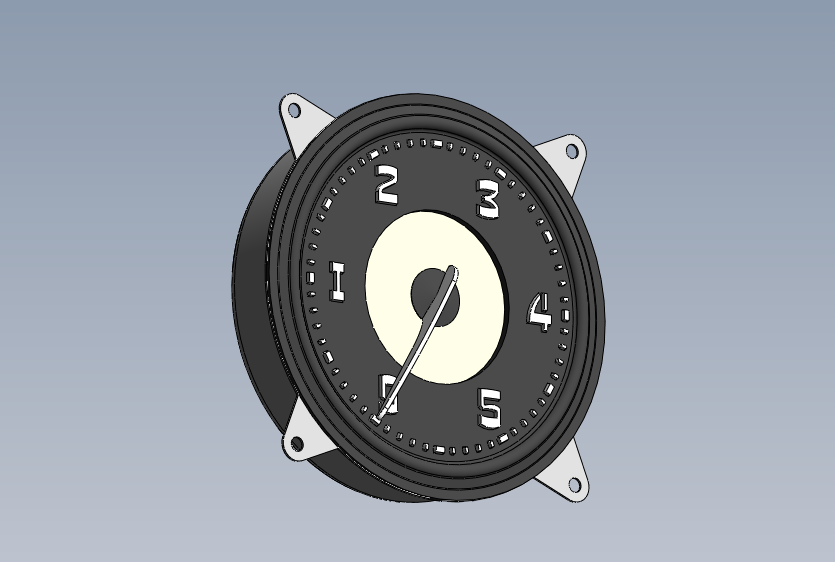

Also - The tachometer I am working on.  Movement provided by a small gauge stepper and small controller board.

RL Chilton

Is there a standard Tach that this is going to adapt to?

GrimGreaser

My plans are to drive the stepper motor with a Arduino board, bringing in the Tach signal through a frequency-to-voltage IC. The Arduino board (https://www.sparkfun.com/products/12757) can potentially control up to 3 stepper motors.

The stepper motors are what drive analog gauges in current cars.

GrimGreaser

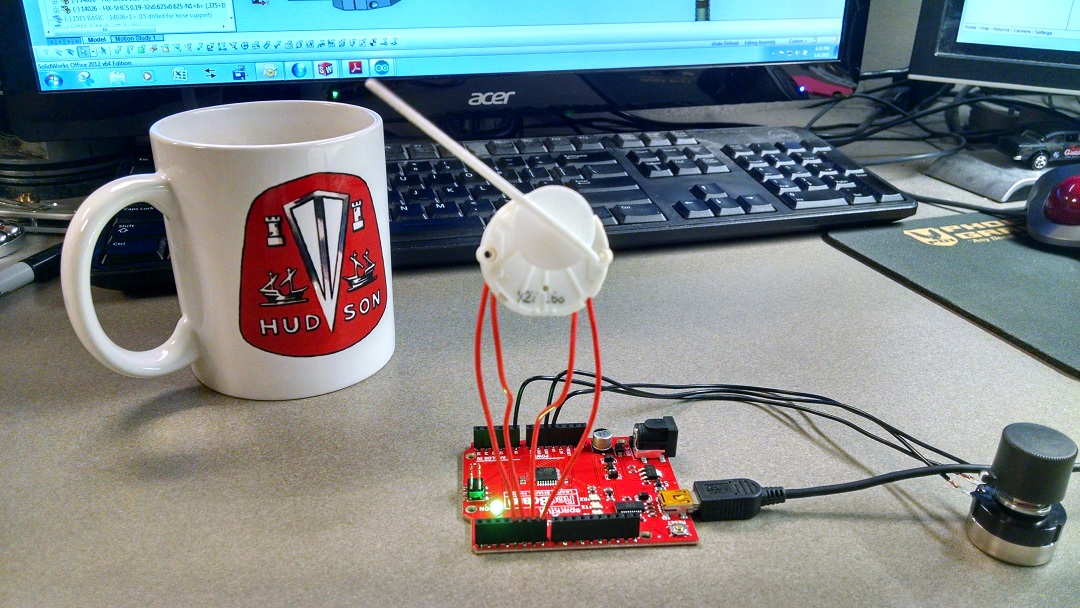

Board, stepper and needle together for simple analog control.

fliptop

All, I have a original on Ebay if anyone is interested, make an offer.
Range - 0 to 110 MPH

JC

RL Chilton

Offer of $10

GrimGreaser

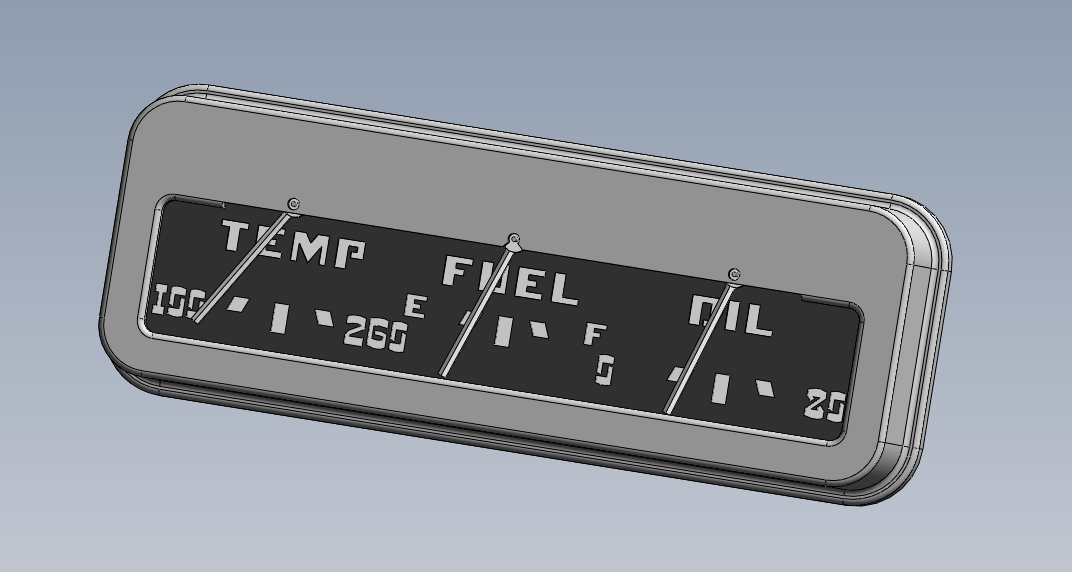

Current update to the ideas swirling in my head...

RL Chilton

Those are all great ideas!  If you end up making a tach with a '52 face (w/white marbling), put me down for one.  Maybe two.

Kdancy

Tach would be great!
As well as the guage face--
