Looking for a few small parts for the 51 Commodore Hudson 3sp od transmission.
I just took the gears and shafts over to my machinist to make up the bushings.
Still need the other parts if anyone has them! Already checked with Al.

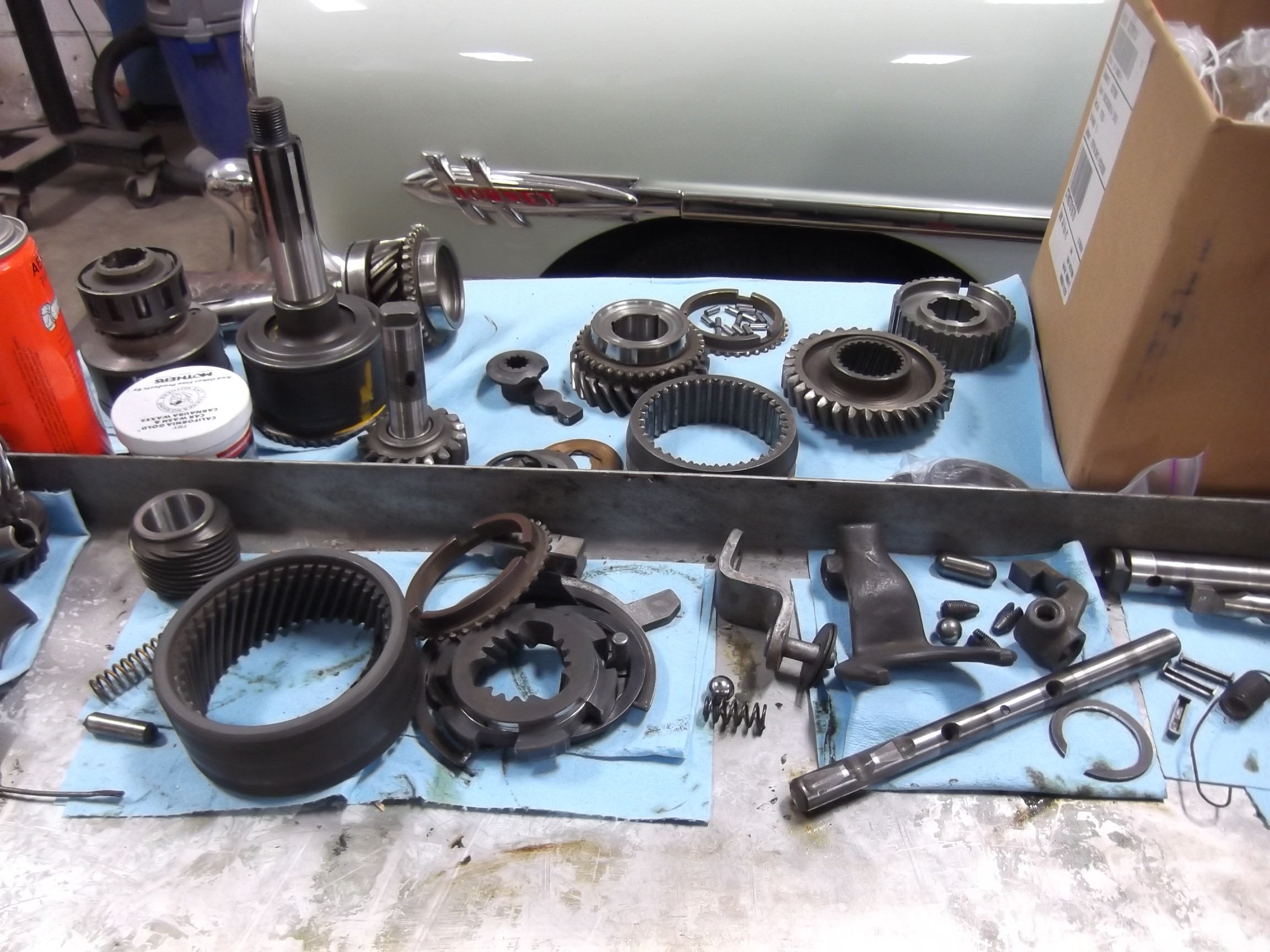

I have the transmission taken
apart now and need to see if you have a few items for it.

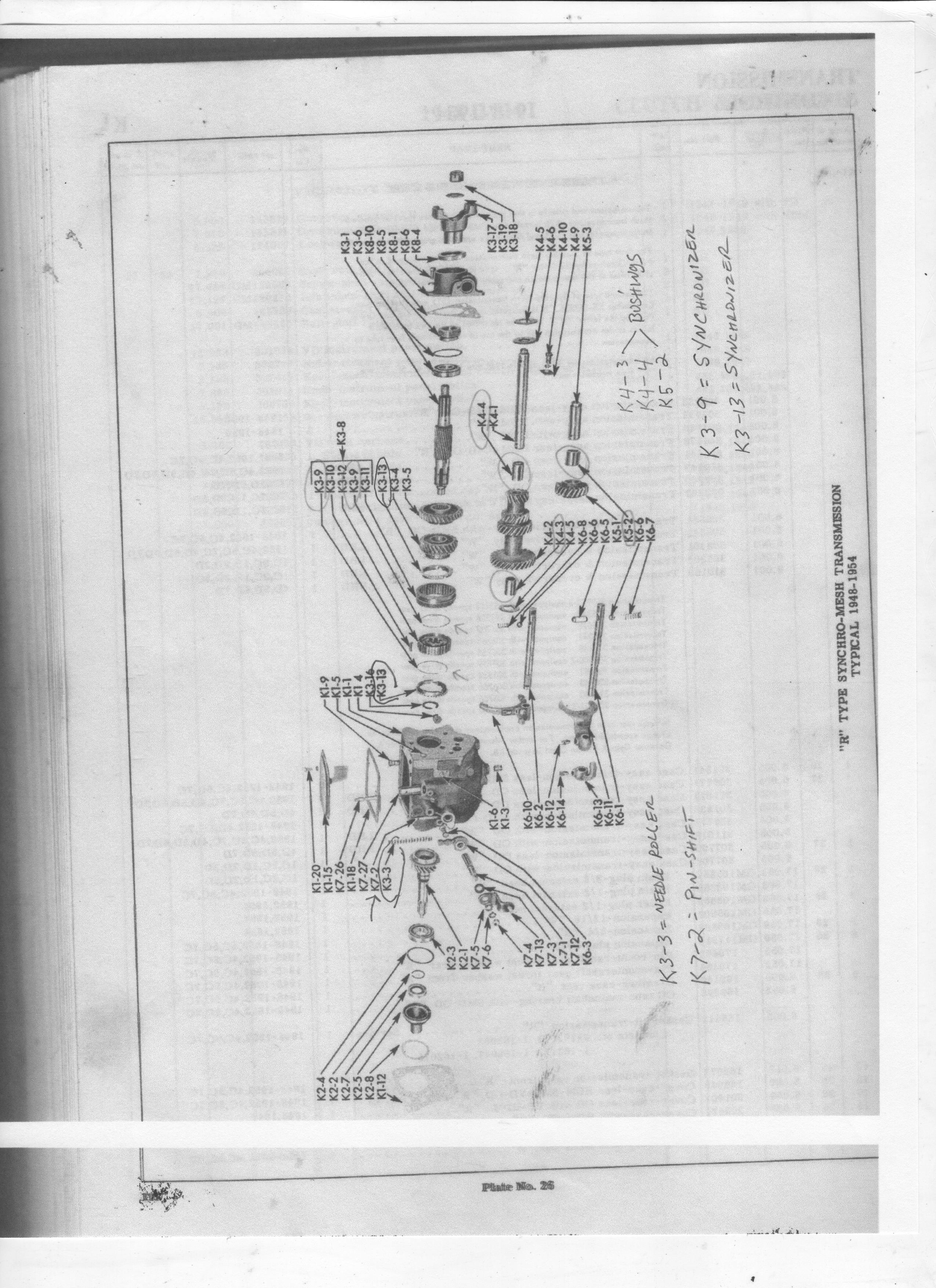

K4-4  #165855  Bushing –
Gear Cluster Rear “R”

K4-3  #306083  Bushing-
gear cluster front “R”

K5-2  #162066  Bushing –
Reverse idler gear “R”

K3-3  #16208 Needle roller –
mainshaft pilot “R”  (takes 16, found only 15)

K3-9  #164473  Spring-
Synchronizer “R”  parts book list only one but I have two as in picture.

I found a third one, all shiny and
torn (maybe someone left it in when they worked on it?)

K3-13  #164472  Ring,
Synchronizer “R”   (2)

K7-2  # GM111845
Pin-shift “R”


Comments

  • Kdancy
    Kdancy Senior Contributor
    edited November 2014
    Ken, when I click on them, they open up to full page.
    Ive already spoken to Al. Sent email to Doug.
    My machinist now has the shaft, gears and bushings and is going to make new bushings up.
    I'll check with timken source on the needle bearings and report back. The shift pin is a tapered pin that was tough to get out.
    Meeting up with Lance tomorrow to get some parts and a 3sp trans that I'm hoping
    Will have some of the needed parts!
    Thanks !
