52 Hudson Hornet Turn Signal Wire Diagram

EssexAdv
EssexAdv Expert Adviser, Member
edited December 2014 in HUDSON

I have looked in the Owners Manual, the parts book and the Mechanical Procedure Manual and can not find the wiring diagram for a 52 Hornet.  As these were an accessory item, I can only assume the diagram was part of the kit and not published... or I can assume I missed it in the books.  Can anyone help me with a copy? I am in need of it as I am putting a 52 turn signal switch and all the needed stuff to make the brake light cancel when the turn signal flashes (More like modern ones, maybe people will notice it more) .


Also, I need one dual filament, original spring type taillight socket.


Can anyone help?


Thanks


Lew

Comments

  • Majumbo
    Majumbo Expert Adviser
    If I'm not mistaken its in the 53-54 repair manual supplement. But... It's a little difficult to understand. Hope this helps.
  • hudsontech
    hudsontech Senior Contributor
    edited December 2014
    In the online library - under 1948-1949 Bulletins - 1948-1953 A.E.A. Tune-up bulletins.  Can be downloaded and enlarged.

    See URL below for the library.

    Hudsonly,
    Alex Burr
    Memphis, TN

  • DavidC
    DavidC Senior Contributor

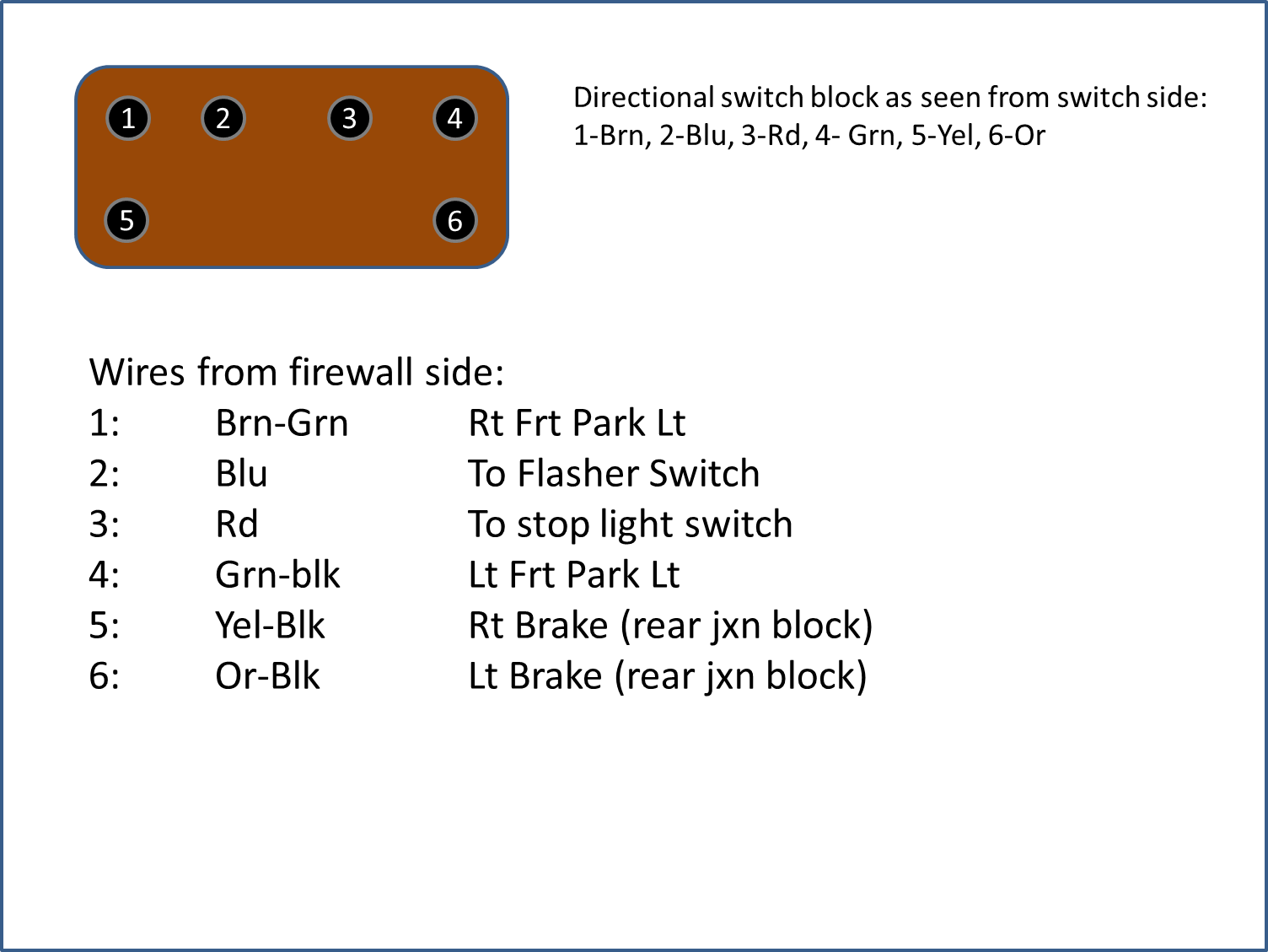

    I had some time to draw it out. The original schematics were very hard to read. I do not know if you have an original junction block. If not, as long as you plug the same number wires together, you will be all right. See attached.
    Hudsonly
    Dave
  • Geoff
    Geoff Senior Contributor
    I have the '48 -'54 wiring diagrams.  Can scan for anyone needs them.
    Geoff
  • EssexAdv
    EssexAdv Expert Adviser, Member

    Thanks David.  This was what I needed.

    Ken, I have the 52-3 turn signal switch.

    Geoff thanks for the offer.


    Alex, I checked and the tune up sheets on your site do not show the turn signal wiring either,  But thanks for the help.


    Lew M

    All is working well with my new turn signals but I still need the lamp socket..


    Thanks all for the help


    Lew

  • DavidC
    DavidC Senior Contributor
    NAPA ECHLIN LS6253 fit perfectly as a lamp socket  in my front parking light housing after removal of a small plastic 'fin'- this mod becomes obvious when you try to inset the socket into the housing.  53 Hudson Hornet sedan.
  • DavidC
    DavidC Senior Contributor
    Oh, and the perfect bulb was 1157 (I got the amber version)
  • 53jetman
    53jetman Senior Contributor
    That #1157 is a 12v bulb.  If you are still on 6v, use the 6v version #1154
  • DavidC
    DavidC Senior Contributor
    Thanks for picking up on that Jerry, I have switched to 12V.
