Brake Drum ID

Kdancy
Kdancy Senior Contributor
edited January 2015 in HUDSON
These came out of the old Packard Hudson dealership. Anyone recognize what their applications are?

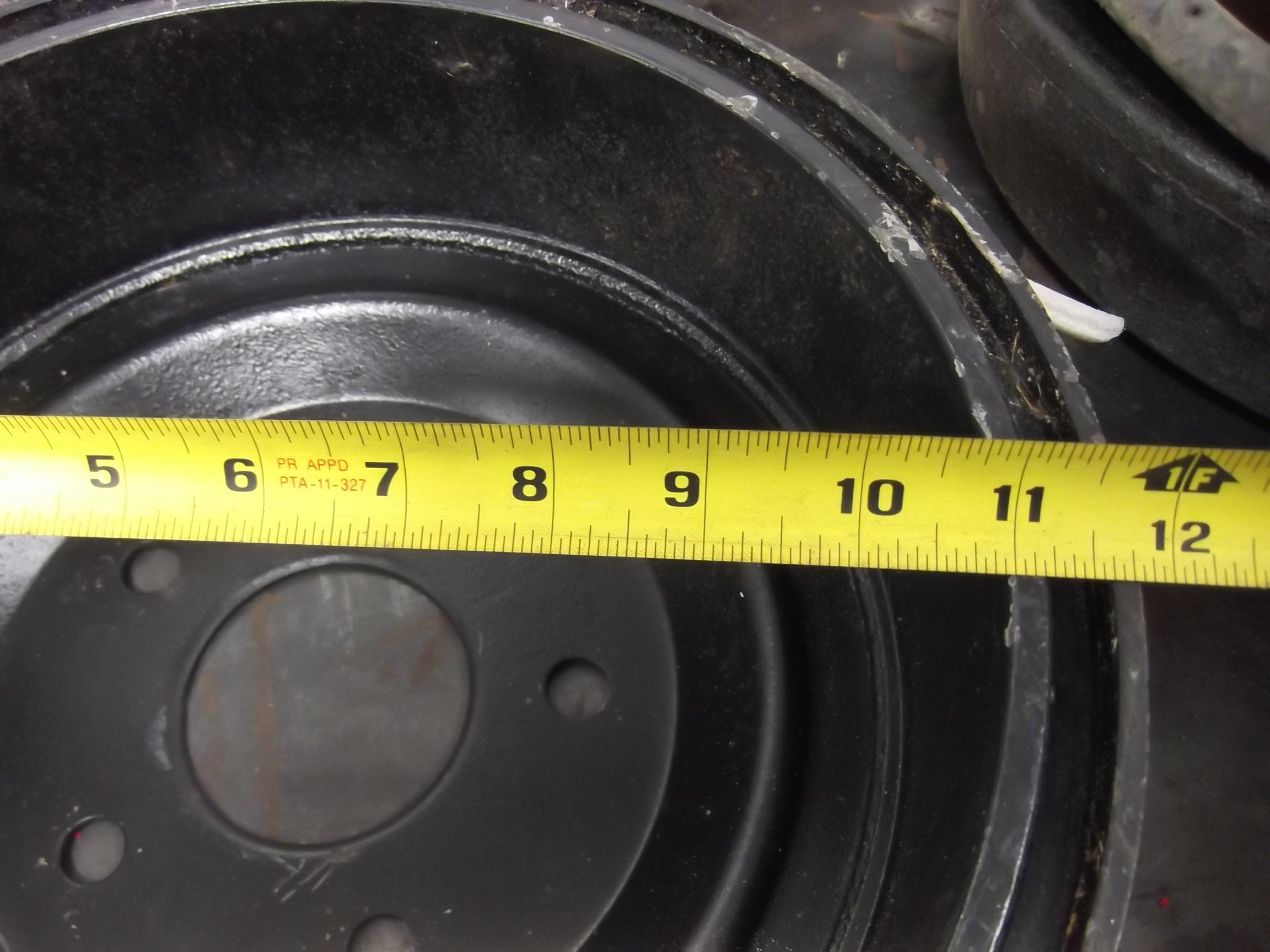

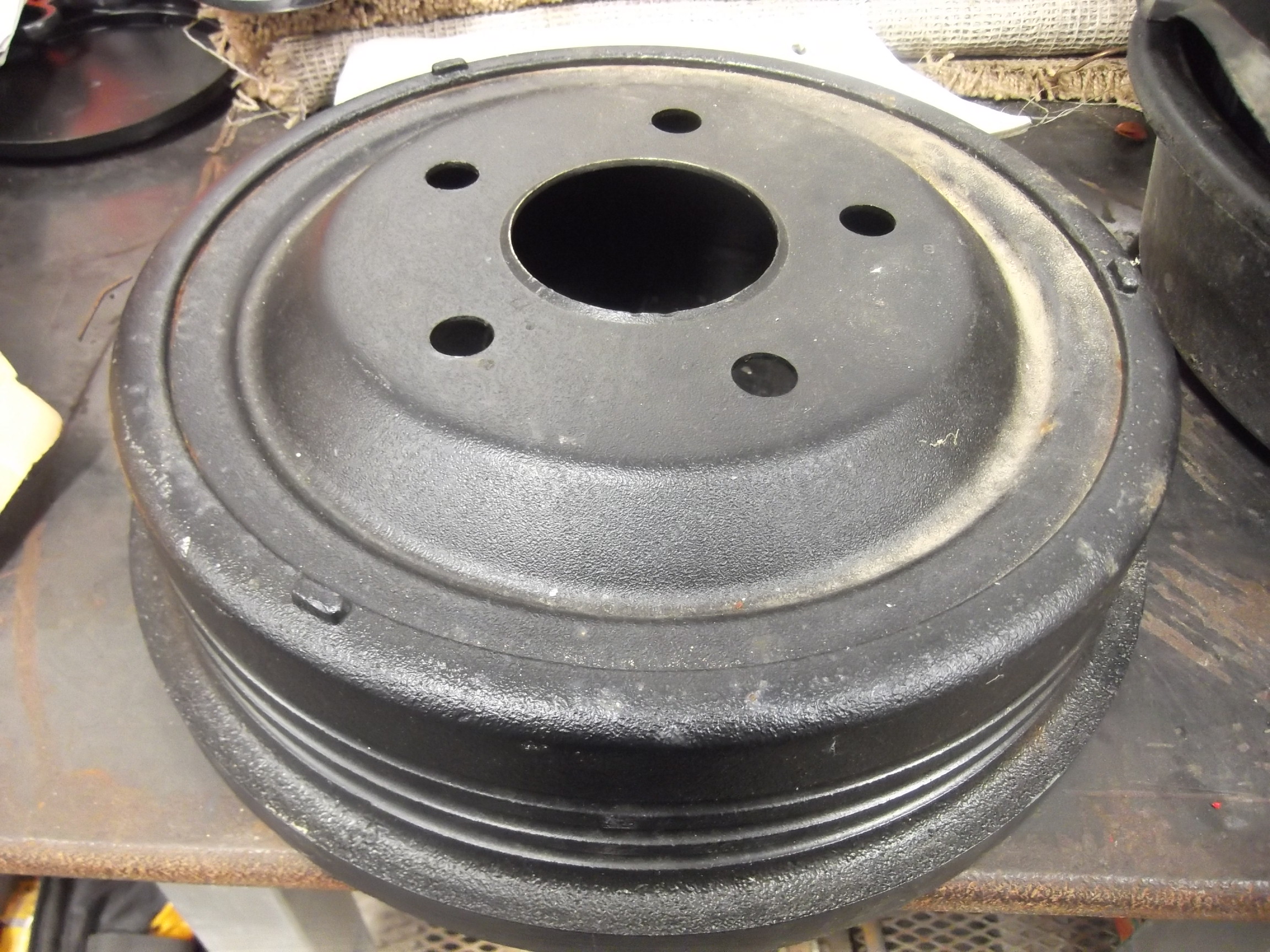

 The one ribbed drum is 11", 5x5 bolt pattern
I think the others are pre-stepdown Hudson. 4.5" bolt pattern.

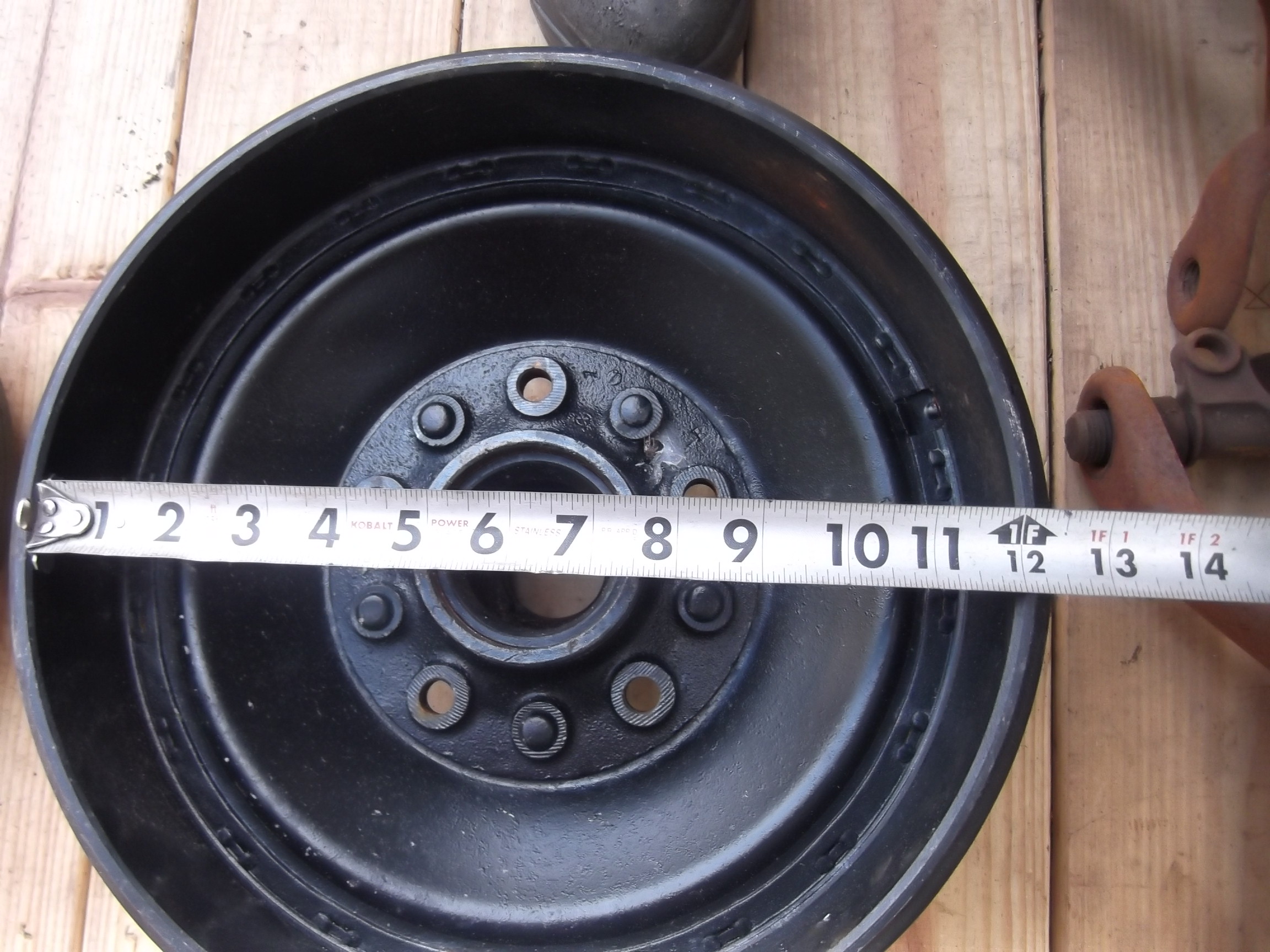

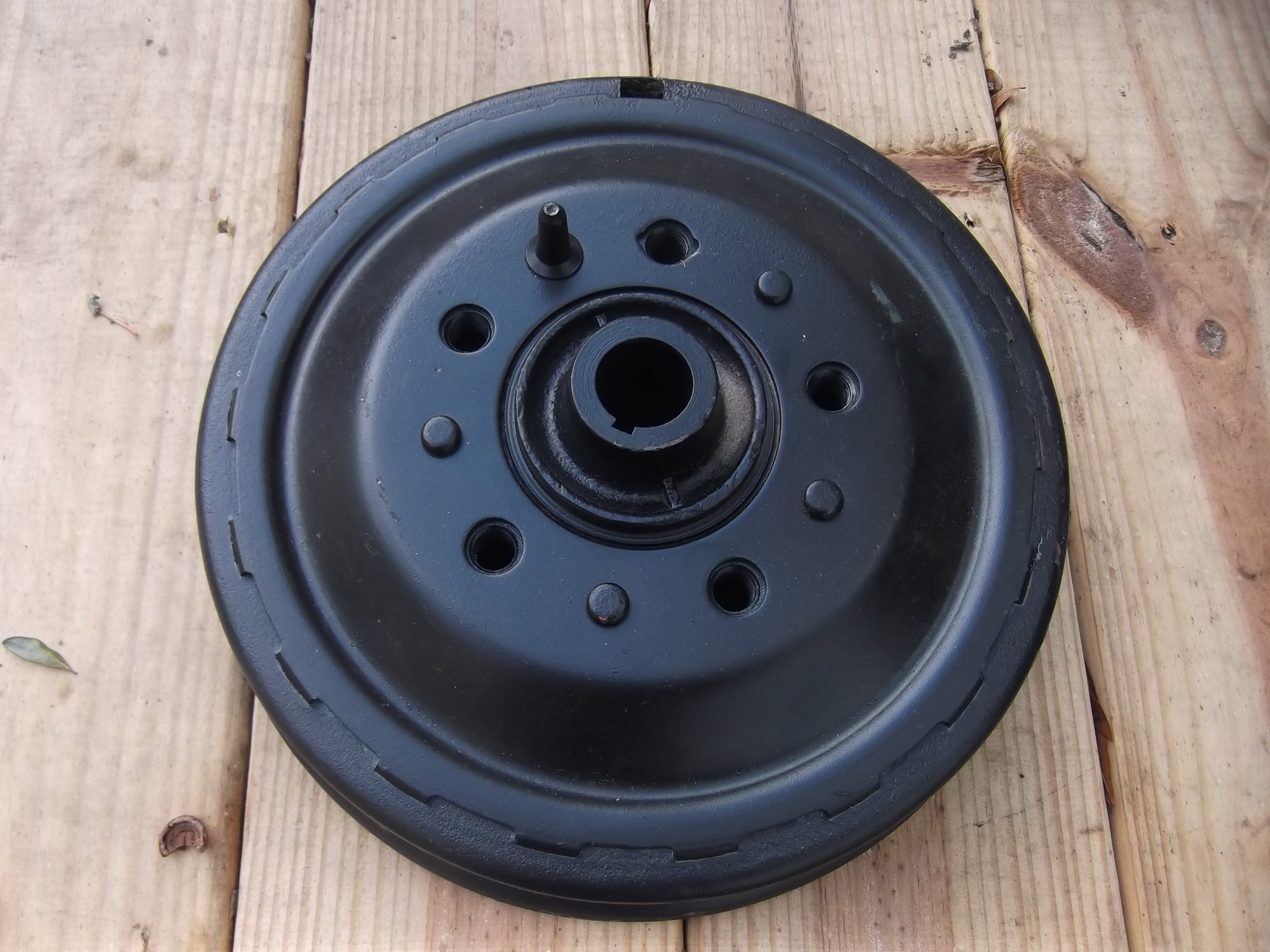

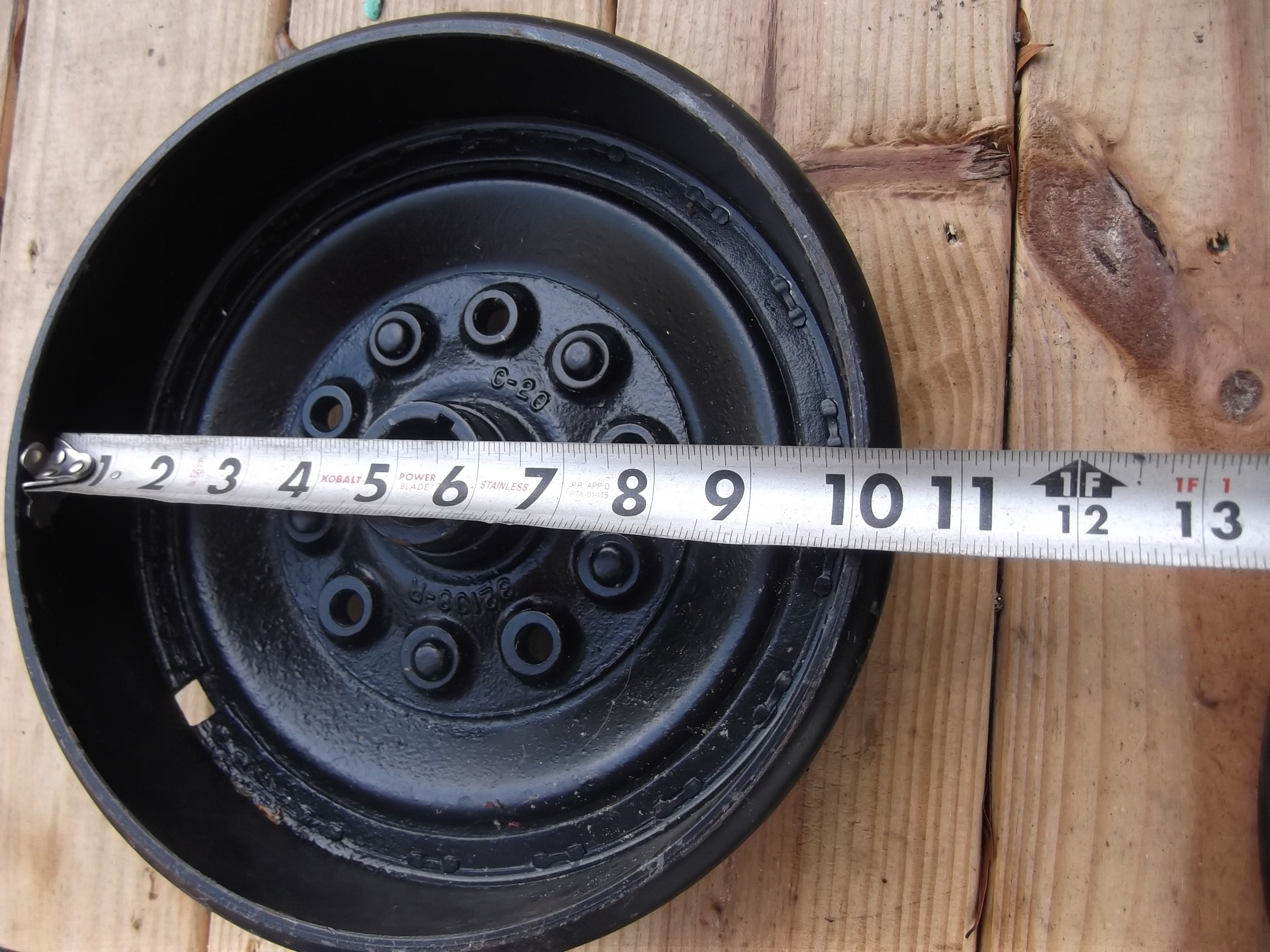

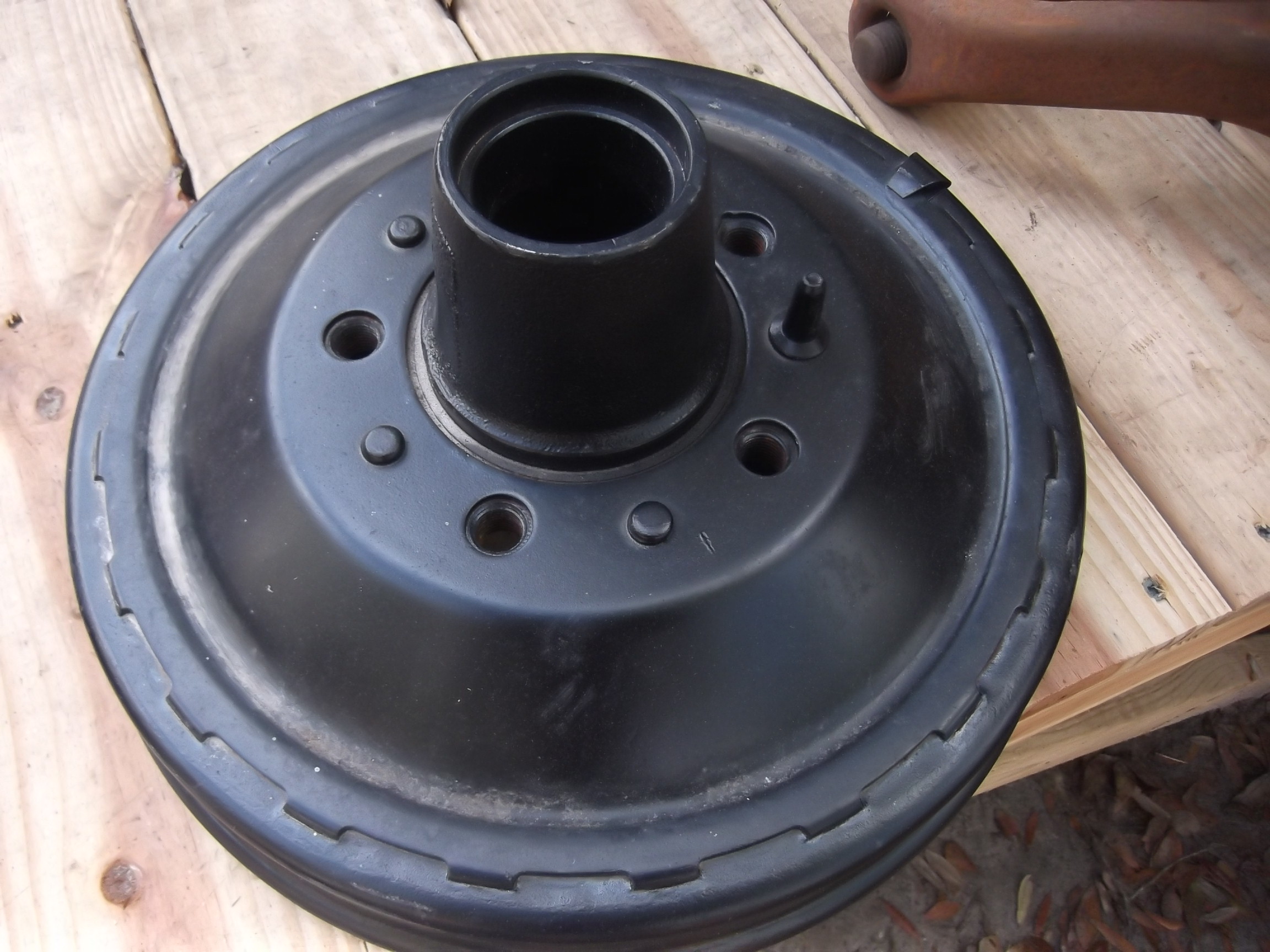

Looks like two fronts that are 12" and two rears that are 10".


Comments

  • Frankvintagefullflowcom
    Frankvintagefullflowcom Senior Contributor
    K,
    The pre-S/D's, 10" would be for the six cyl cars (except the pick-ups and possibly other commercial cars). A 12 inch wouldn't be Hudson as the eight cyl cars and pick-ups used an 11 inch dia. drum.
    Width in both cases is 1-3/4.
  • Kdancy
    Kdancy Senior Contributor
    So it looks like the two 10" rears are Hudson. Maybe the two fronts are a truck application (not Hudson)  of some sort?
    I don't need them and need to id them for some one out there that does!
    Thanks!
  • Frankvintagefullflowcom
    Frankvintagefullflowcom Senior Contributor
    Do the 10" rears appear to be new?
    F
  • Kdancy
    Kdancy Senior Contributor
    Frank, yes, they are NOS. the prier parts owner spray painted them.
  • faustmb
    faustmb Senior Contributor
    Any part number on the front 12" drums? They look similar to the 30 Essex I'm woring on, but 30 was 8 or 6 lug. 31 and 32 Essex were 5 lug I think, and maybe some Hudson models of that vintage were too.
