6 wire Turn Signals

48Sed

Does anyone have a wiring diagram or color code for the 6 wire signal switch?

The colors are blue,orange,red,brown,yellow ,green.

Thanks

Jon B

I tried e-mailing you a diagram but the e-mail address at your profile page, bounced!  (the one that starts with "psb").  PM me your correct address and I'll be glad to oblige.

J Lombard

Jon:

Would you mind sharing that diagram. My email is jlombard@jtlombard.com.

thanks

J Lombard

Glowplug

This link takes you to a wiring diagram booklet which contains the diagram requested

http://hudsonterraplane.com/tech/1946/1946-1954_wiring_diagrams.pdf

DavidC

52 Hudson Hornet Turn Signal Wire Diagram

Look up the above discussion- I posted a wiring diagram that you can read

PaulButler

And just to put a plug in for the club library ; the document oldfarmer mentioned is also here:

http://www.hetclub.org/index.php?option=com_booklibrary&task=view_bl&tab=getmybooksTab&is_show_data=1&id=645&catid=78&Itemid=1096

48Sed

Paul

Half the pages are blank when I check them or missing  most of the diagram?

PaulButler

That doesn't look good does it! Leave that one with me and I'll check it out

DavidC

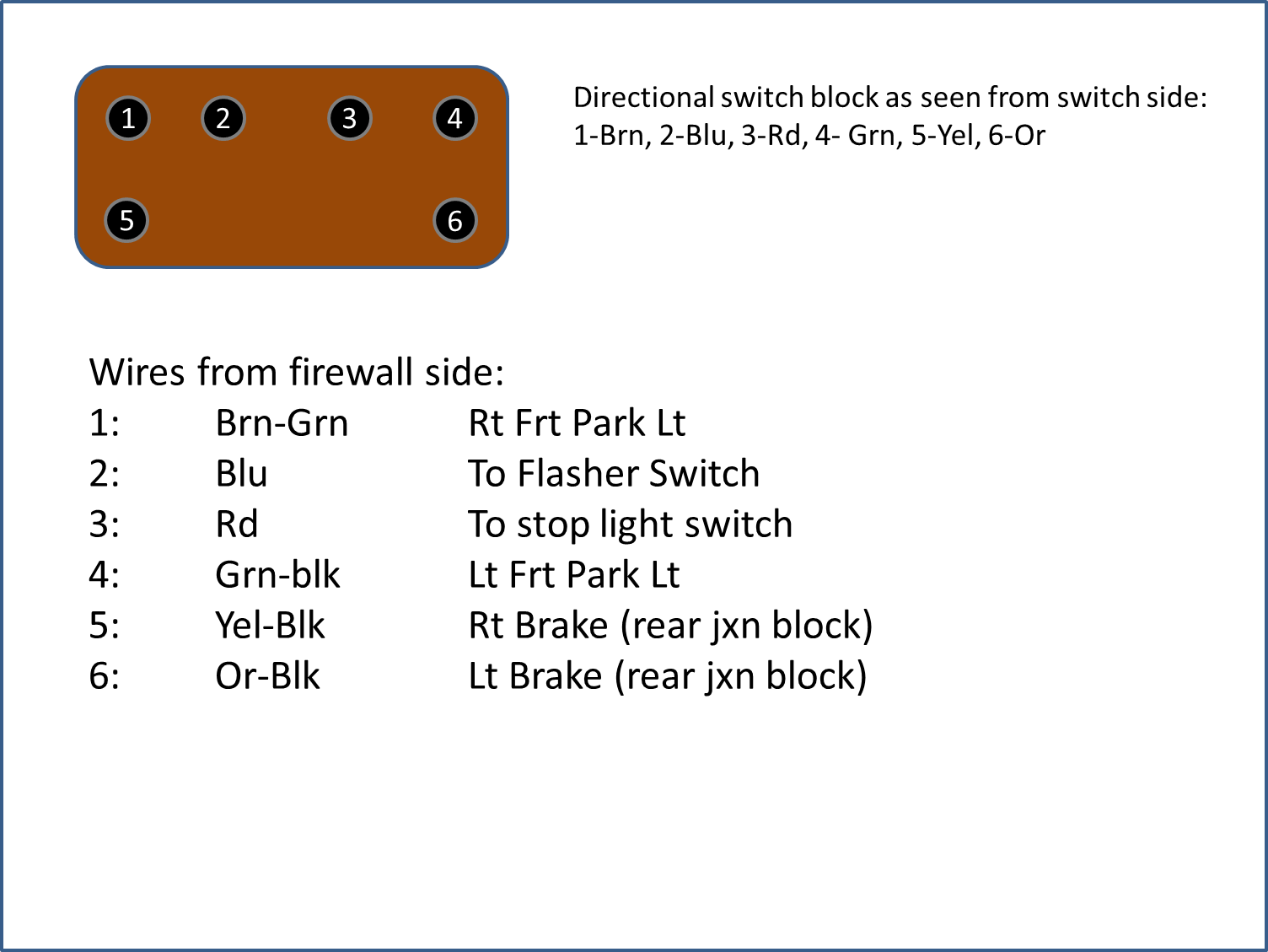

Attached is the diagram I made

Kdancy

 Paul, I have a couple of questions.
When you click on and bring up the Hudson Library link, what is included in the "buy now" ?
I pulled up the pdf pages and I see the diagrams with wire color. Is there any info on each wire size?
Thanks!!

PaulButler

Hi Kerry,

The "Buy Now" option is something that we have recently included and allows you the opportunity to get a document professionally printed by our Club Store duo of Jeremy & Theresa and then mailed off to you.

So if you click on it the document you are looking at will be added to your shopping cart and you'll be able to pay for a paper copy of it.

I believe that moving forward this will be offered as a real-time option at the various meets throughout the year or at least at the meets that Jeremy & Theresa are able to attend.

There will be a few more changes coming along in the not too distant future with regards to the Club Store. We have been beavering away in the test site testing a new release of software to drive it and that will be made available as soon as we are happy that it passes all the tests.

Kdancy

That is good, glad these are available.
Now, any way we can get the wire size info for duplication?

Ric West IN

Kerry,  The wire size/gauge is given on the wiring diagrams in your owner manuals, at least the 1948-54

has this info.

"Ric"

48Sed

Paul

Any luck with the blank pages?

PaulButler

It's on the list to be looked at over this weekend

48Sed

Thanks for checking into it.

PaulButler

I have re-uploaded the manual and there is now only one blank page that I see which is Page 2. I did notice when looking on the hudsonterraplane.com that the manual was sometimes a little slow to load. This does happen sometimes with embedded Adobe documents and you think that things are missing. They aren't ; it's just taking a while longer to load but isn't telling you that!

The clarity of some of the diagrams are a little blurry so I'll have a word with the Lord of the Documents Alex to see what we might be able to do

Kdancy

From Ken Cates- he looked up the info, found some older posts.
I checked the source of the diagrams and the original
does not have wire gauge listing either. Some sleuthing of past forum posts

Uncle Josh Senior Contributor

October 2006 The stepdown diagram has all the wire sizes.
Generally

#1, Battery cables

#10, Starter sol to reg B term, CB and horn relay feed

#12, Ignition switch feed, gen to regulator A term, horn
and light sw feed, dimmer sw and headlamp feed

#14, ignition switch to coil, coil to dist., horn button
wire, tail, license feeds etc

#16, signal wires, quarter, courtesy lamps etc.

#18, indicator lamps

Ric West IN

Sorry my info was not helpful . Every Hudson owner manual I own from 1948-1954 has the wire size of each circuit listed .  Maybe the diagram/lube chart is missing from yours.

"Ric"
