54 power brake photos

bob ward
bob ward Senior Contributor
in HUDSON
I have a 54 pendulum brake pedal that I want to fit to a 53. If a kind person can post photos of a 54 power brake firewall so I can be sure of drilling mounting holes in the right places that will be greatly appreciated.

Bob

Comments

  • onerare39
    onerare39 Expert Adviser, Member
    edited May 2016
    Bob,

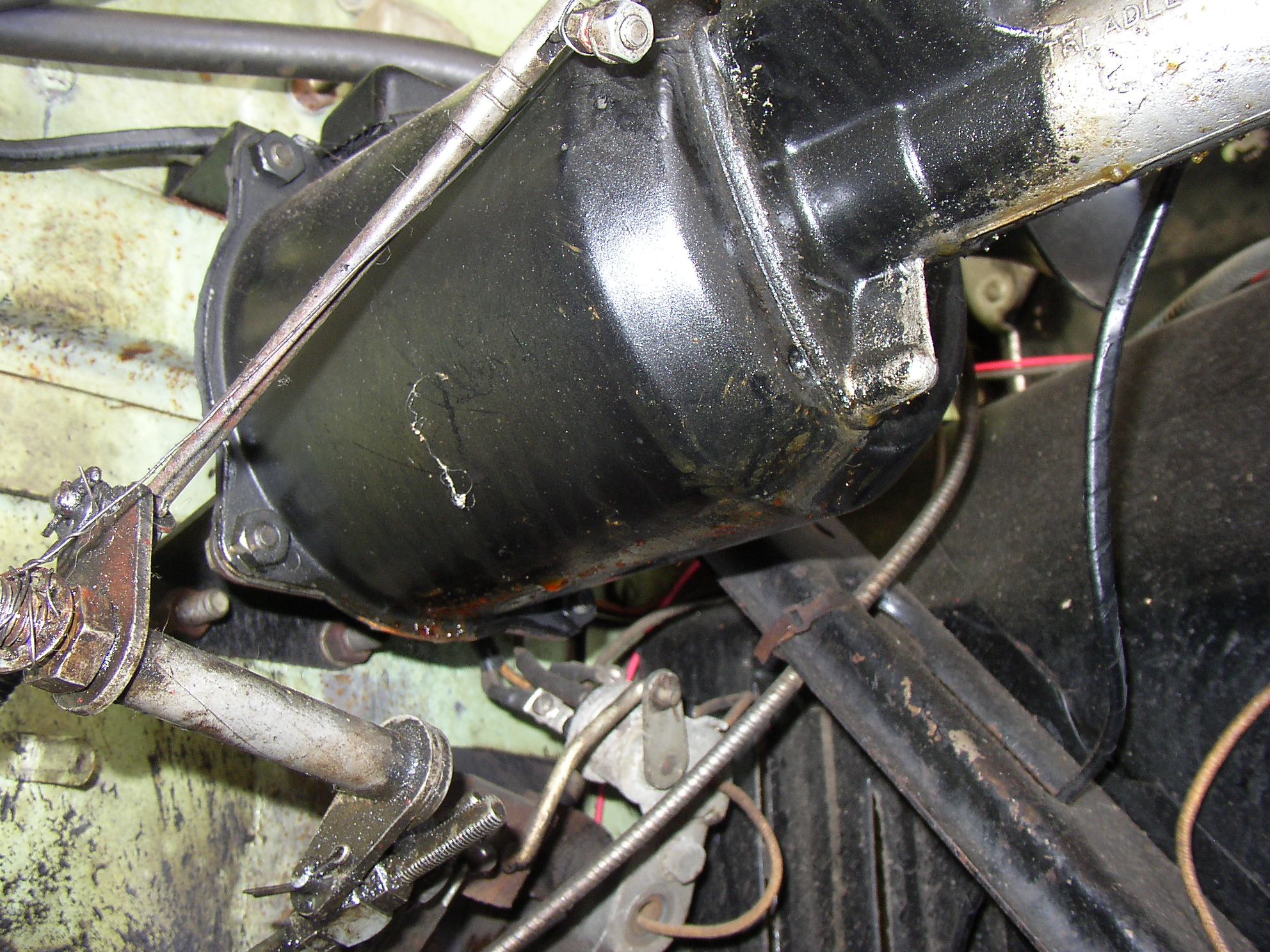

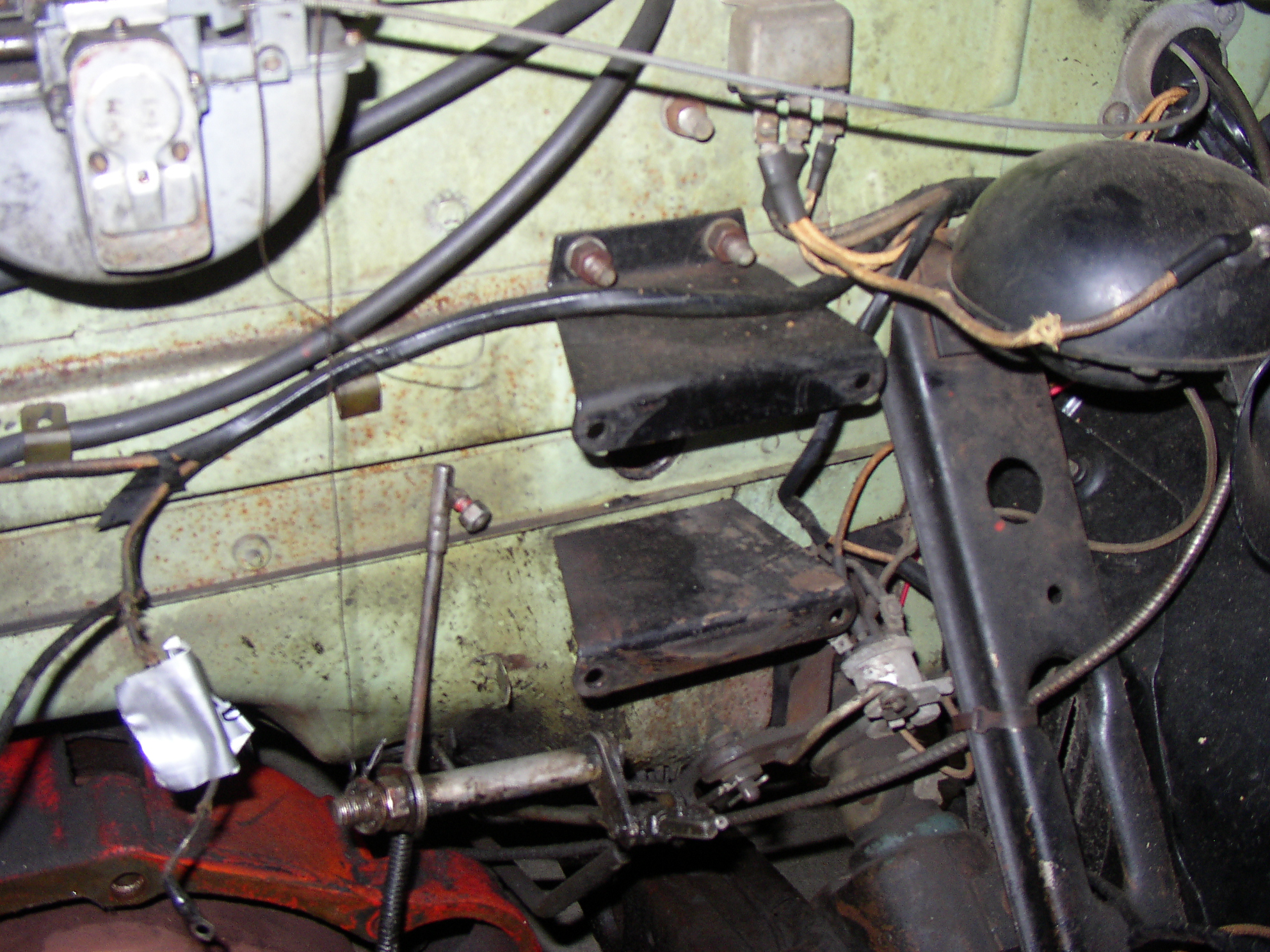

    Here you go, hope this helps.  Let me know if you need additional photos.

    John Forkner


  • RichardD
    RichardD Member

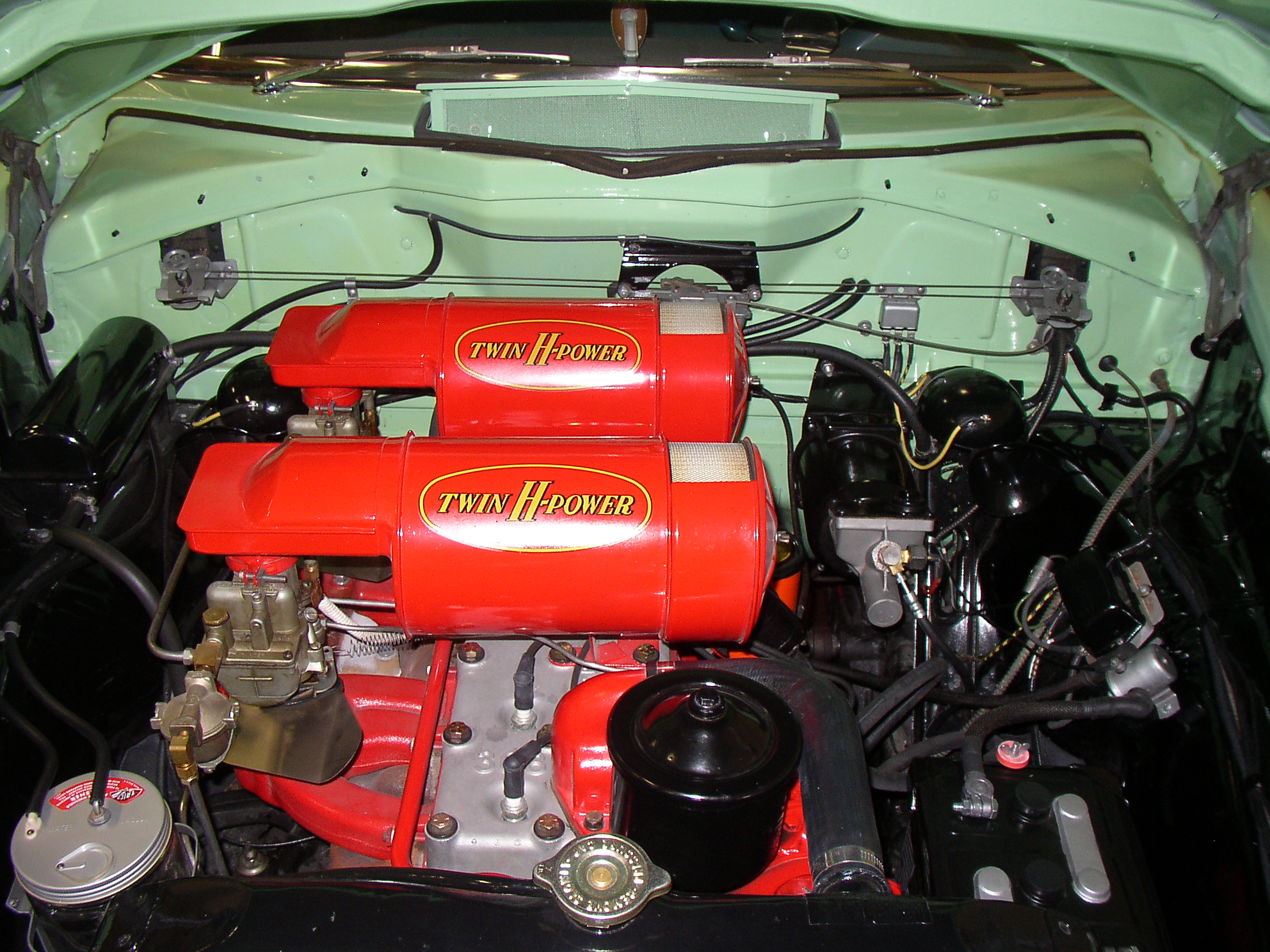

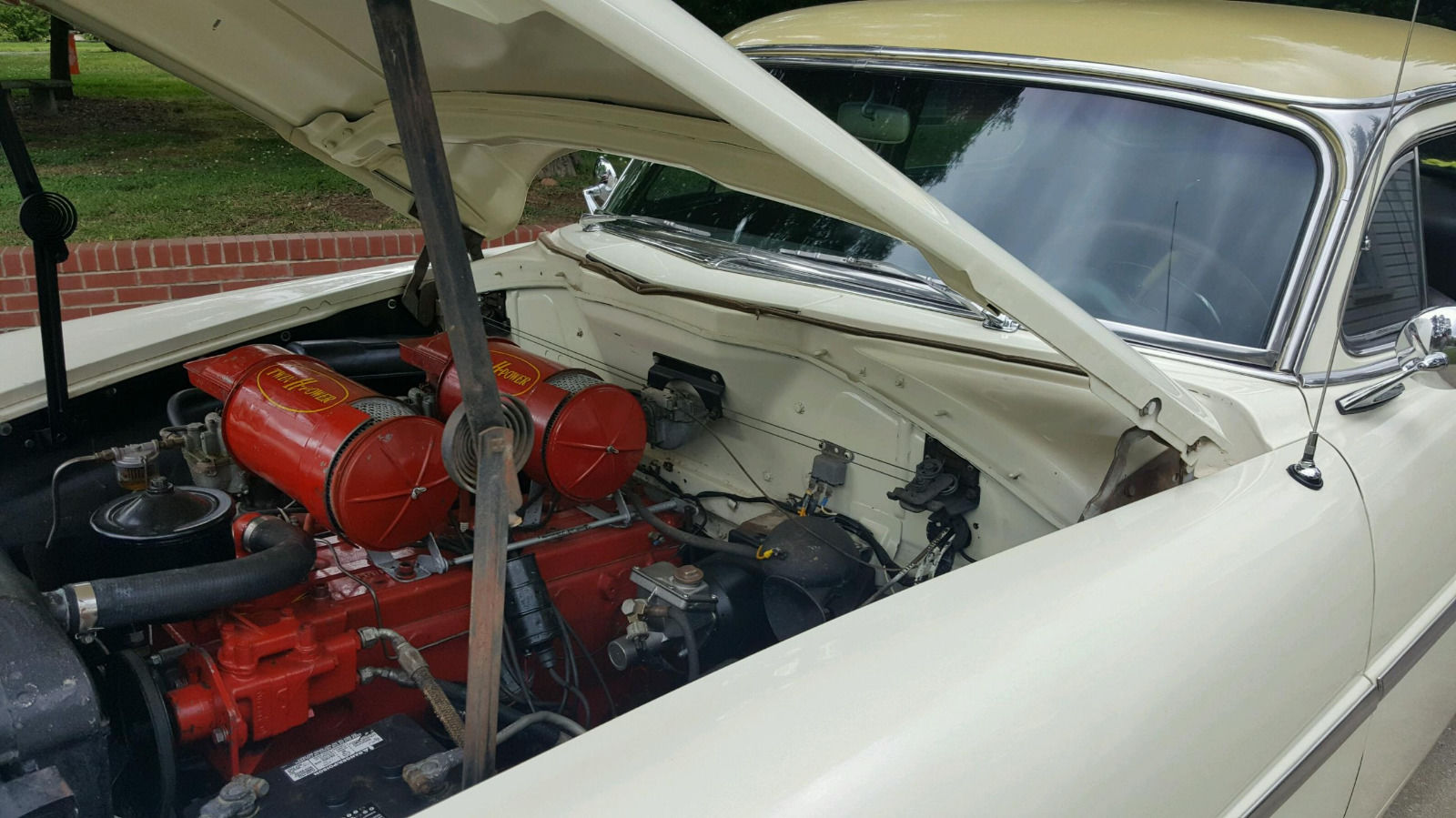

    This on eBay just now. not worth much but anyway~~~


  • bob ward
    bob ward Senior Contributor
    Thanks John, that's just what I need. Can I ask for a dimension from the edge of the brace bracket to the centre of the first hole please?

    It looks like the 2 top holes are half on half off the the horizontal seam, so that determines the vertical position of the brake pedal quite neatly.
  • onerare39
    onerare39 Expert Adviser, Member
    Bob,

    It's 1 7/8" .  You are correct in the location of the holes on the horizontal seam.  Make sure to note the orientation of the brackets on the firewall.  After you get the first hole drilled you could bolt the brackets to the power unit to get the other holes lined up and marked.




  • RL Chilton
    RL Chilton Administrator, Member
    Bob-

    Please keep us posted on your progress.  I would be interested in how your project turns out.
  • onerare39
    onerare39 Expert Adviser, Member
    Bob,

    Review this previous thread regarding the rubber line that goes from the brake unit to the distribution block.  Let me know if I can help.

    John Forkner


This discussion has been closed.
