46/47 Truck Taillight

blaine

Does anyone have a picture of (or info on) the original taillights on a 46/47 Hudson pickup?  One of my trucks doesn’t have any.  The other has two different lights.  I just purchased another one from a lot of Hudson pickup parts and it doesn’t match either of the other two.

charles4d

My 1940 is the same up to 1947 no difference

blaine

Can you share photos or other details?  I have no clue what they look like.  All 3 of mine are different sizes and shapes.

charles4d

Cant get the picture to up load

1954Hudson

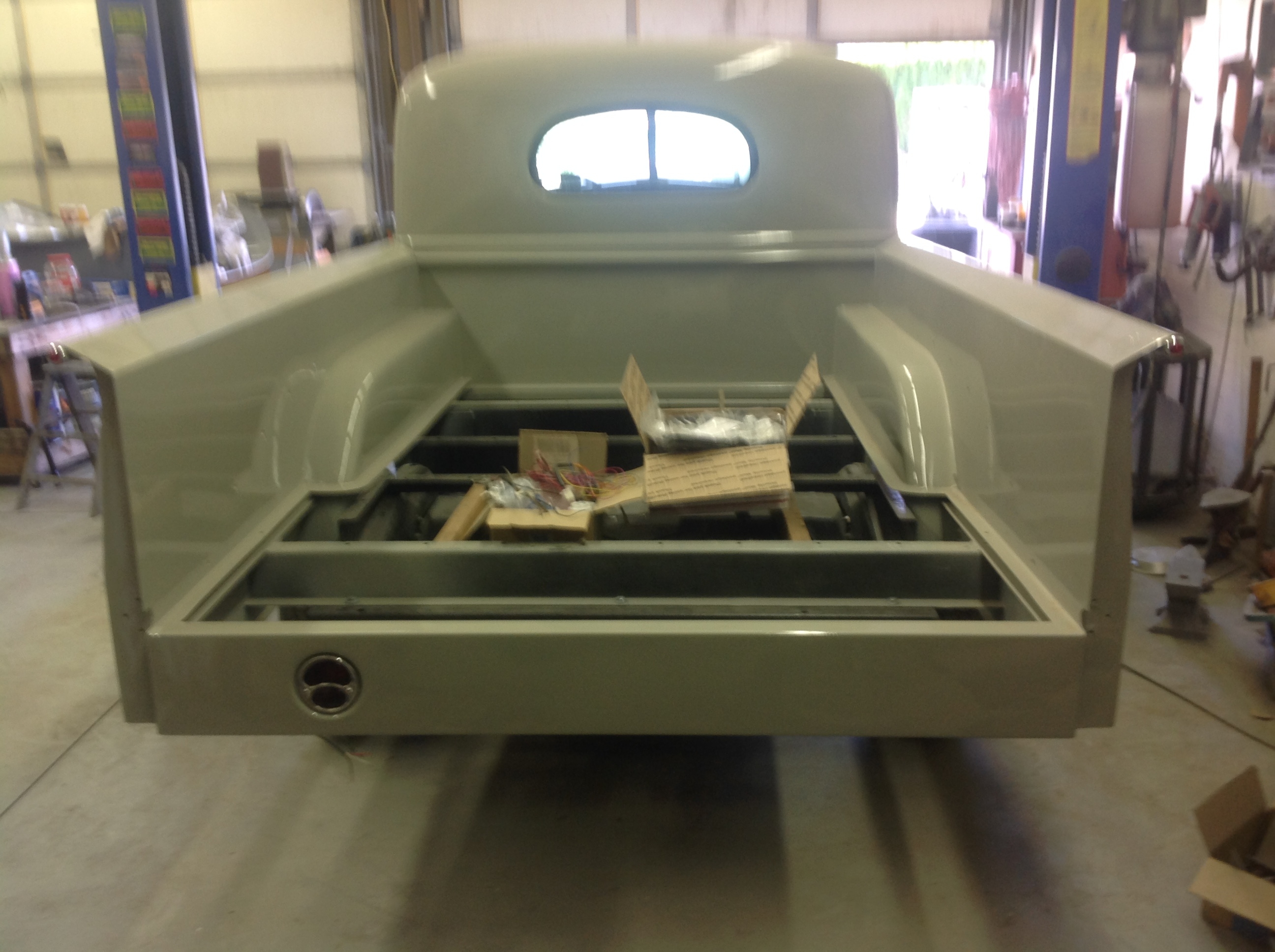

1946 pick-up

blaine

1954Hudson said:

1946 pick-up

I’m looking for a close up picture to help identify the specific taillight to use.

Ric West IN

Blaine,  I sent you to the source of a beautiful repro.  $ 48.00 is rather inexpensive for a correct looking tail light.   Chances of finding an original in usable condition are slim and none.  I've been looking for more than 50 years.   Thanks to the Jeep guys, we now have a source.

blaine

Thanks Ric.  Here’s the current link for anyone else that’s interested... https://walcks4wd.com/left-naco-tail-light-original-style-1945-49.html

blaine

One more question... how many of these lights did the pickup have?  My 46 has 3 holes and my 47 has one hole.

Courtesy Man

Not sure what I have in the following : Red lensThree and a half diameter 2 holes for attachment. Part number 144735 in a yellow Hudson box - however I have a bezel also marked for pick-up and the lens is too big - diameter on bezel appears 3 and 1/4.  Perhaps I have one correct and the other wrong. No part number on bezel. May attempt photos but not good at it. Let me know what you think I have. Gert Kristiansen

Lklemm1

When I rebuilt my truck, I used tail  lights that I purchased at a farm supply store. When they are back in the hole you can't see much of them. I switched the bulb to 6 volt.  They where about $15.00

Lklemm1

Mine had 3 holes 2 for the bolts and 1 for the wires.

blaine

From what I can tell the Pickup was only supposed to have 1 taillight... and no rear bumper.  Seems like all the trucks I see have 2 taillights and a rear bumper.

Lklemm1

1 light on the drivers side is original. I think, as I did, they put 2 on for turn signals and safety. You can put a turn signal switch  off of a 50- 54 Hudson into the column and it looks original. Works great. I can send you pictures of all this on mine if it would help.

Lklemm1

I sent you a pm. And pictures to your email. Hope it helps.

longlivelance

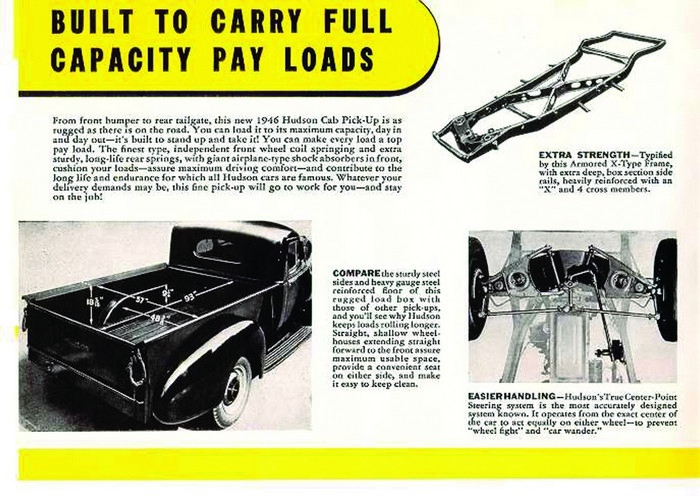

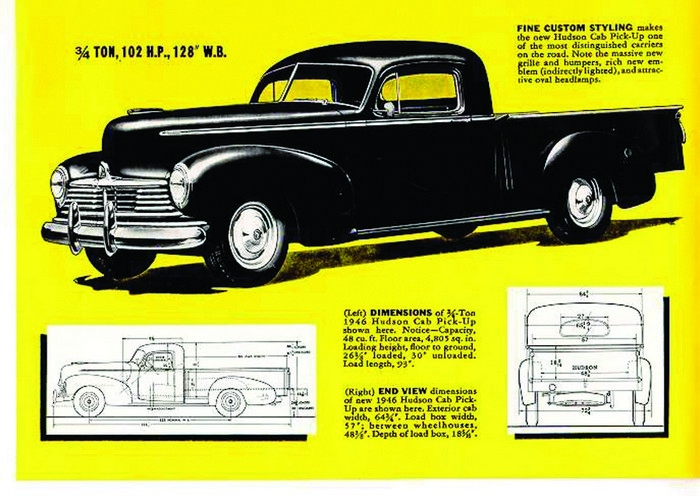

These old listings have some pretty good photos of mostly original trucks, including the original tail light setup.

http://www.kcclassicauto.com/1946_Hudson_Series_58_Pickup_Numbers_Matching_Frame_Off-1027-Lg.html

http://motorlandamerica.com/gtcd/hudson-c-28-34-ton-pickup/

40indianssgmailcom

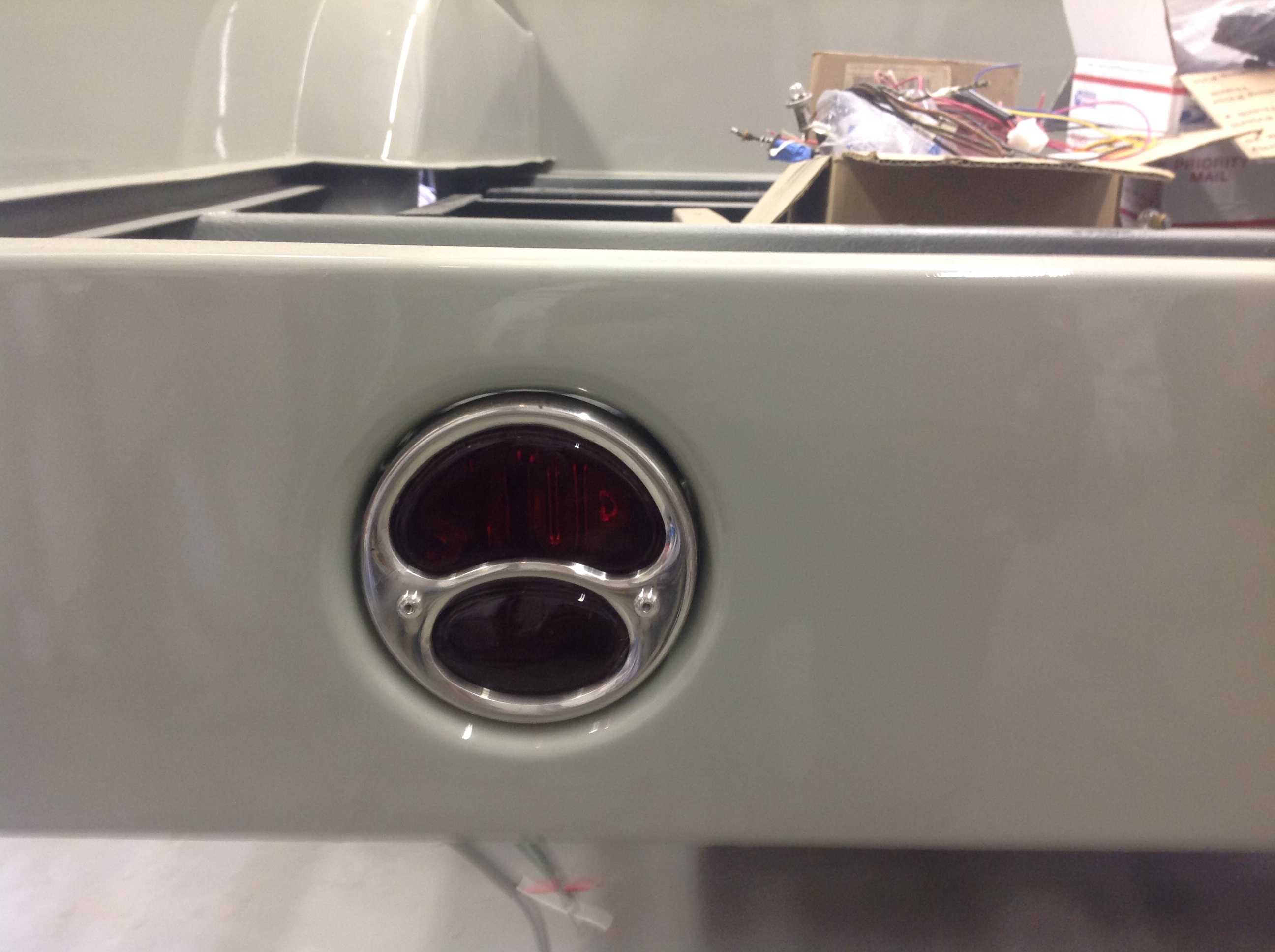

Here is my solution although not strictly original with a ford model a taillight and leds in the bed rolls for driving lights and turn signals

Tomlewis

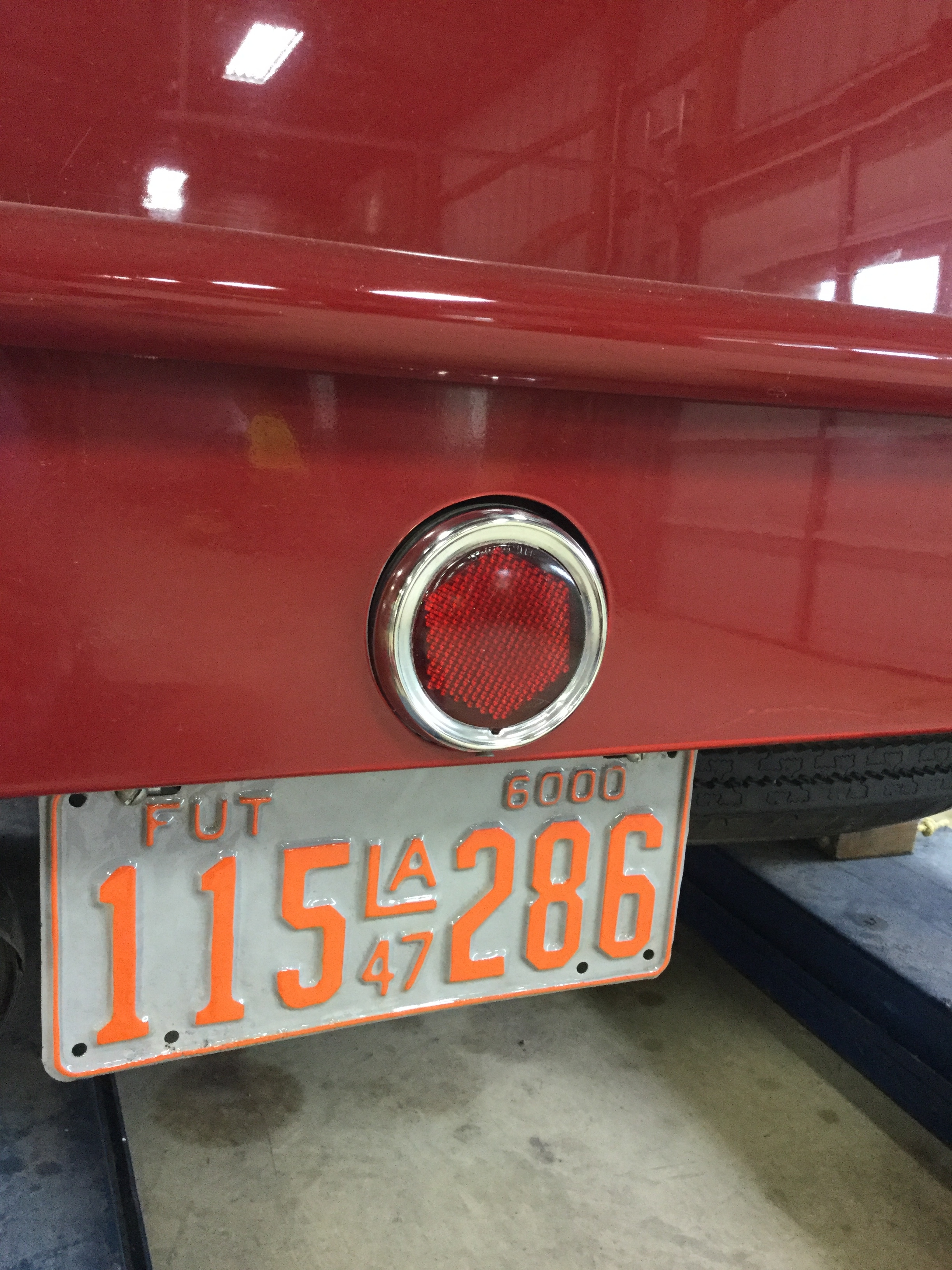

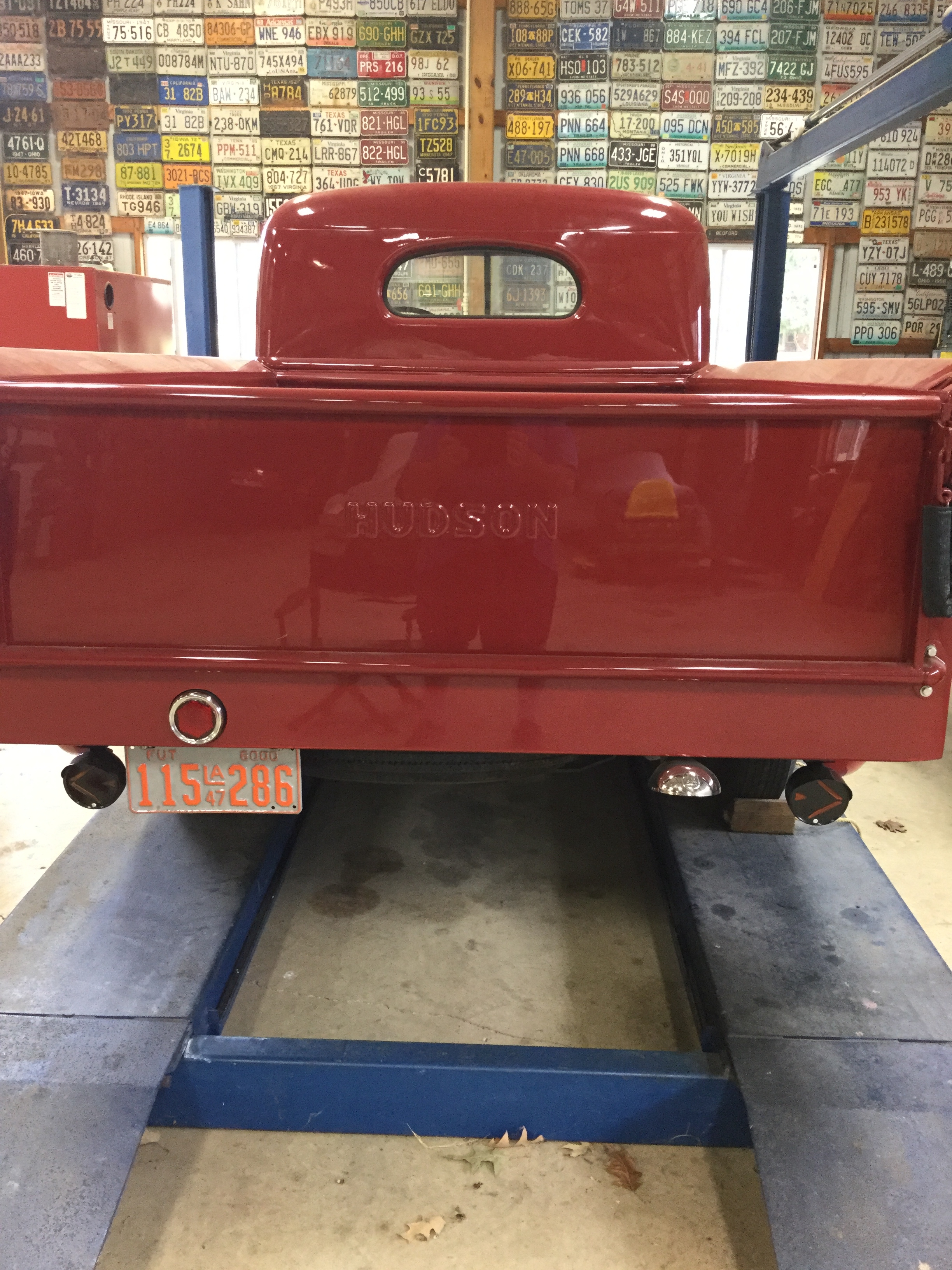

I’m not sure if my taillight is original ( I think so, but not positive ). Here  is what it looks like. The under side of the taillight body incorporates a lens to illuminate the license plate

I fabricated brackets and hung old school Signal-Stat truck arrow turn signals


Tom
