Headlight relay circuit diagram
Hi
I would like to install headlight relays onto my 52 wasp. Does anybody have a circuit diagram for this? Electrics do my head in at the best of times adding positive ground to the mix completely fries the grey matter.
Regards
Steven
Comments
-
Hello Steven, do I need to fly my heiney to Oz to wire it up for you??? It's very simple, and you can use most of the original wiring with some care, but need new wires from battery to the relay(s) via 20 amp circuit breaker. Fuses are not recommended , as a self resetting circuit breaker offers a margin of safety.
0 -
HA ha . Just wanting to check which terminal on relays go where.
0 -

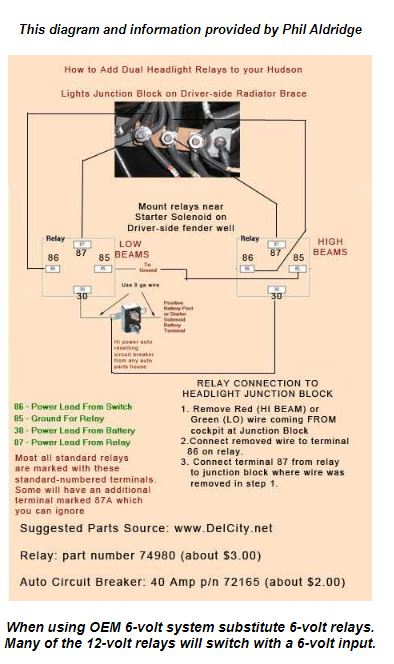

This diagram should provide everything you need to make the headlights gleam
You are welcome to visit my website for free to find this and other tips that have been shared. Thanks to Phil Aldridge (RIP) for this one. https://hudsonrestoration1948-54.com/
0
